M54677FP

Features: `Wide output current control range (20 1000mA)`Bipolar and constant current`Built in a thermal shutdown circuit`Built in flywheel diodesApplicationOffice automation equipment such as printer, FDD, HDD, and FAXPinoutSpecifications Symbol Parameter Conditions Ratings Un...

product image

M54677FP Picture
See larger image
SeekIC No. : 004405775 Detail

M54677FP: Features: `Wide output current control range (20 1000mA)`Bipolar and constant current`Built in a thermal shutdown circuit`Built in flywheel diodesApplicationOffice automation equipment such as prin...

M54677FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54677FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Wide output current control range (20 1000mA)
`Bipolar and constant current
`Built in a thermal shutdown circuit
`Built in flywheel diodes


Application

Office automation equipment such as printer, FDD, HDD, and FAX


Pinout

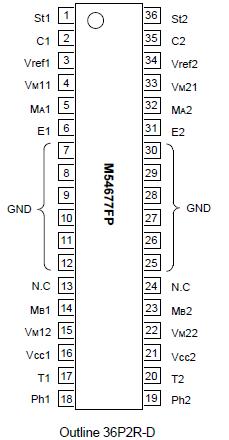

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc
 Supply voltage Pinand21
-0.3 7
V
VM
 Output supply voltage Pin33and32
-0.3 28
V
VL
 Logic input voltage Pin36and
-0.3 6
V
Vc
 Analog input voltage Pinand35
-0.3 Vcc
V
Vref
 Comparative input voltage Pinand34
-0.3 Vcc
V
IO
 Output current
1500
mA
Pd
 Allowable loss Mounted on a glass epoxy board (100mm x 100mm, t=1.6mm)
2.0
W
K
 Thermal derating Mounted on a glass epoxy board (100mm x 100mm, t=1.6mm)
62.5
°C/W
Tj
 Junction temperature
150
°C
Topr
 Operating temperature
-20 75
°C
Tstg
 Storage temperature
-40 125
°C



Description

The M54677FP is a semiconductor IC to drive a bipolar stepper motor directly by controlling the coil current with the constant current method.
