Features:

· Capable of controlling the speed in forward and reverse rotating directions
·Capable of controlling the speed in high speed mode
·Large output current drive (IO(max) =700mA)
·Built-in clamp diode
·Flat package (16P2N )


Application

Micro-cassette for phone-answering machine, AV equipment, and other general consumption appliances


Pinout

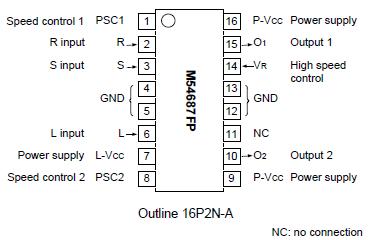

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Supply voltage

-0.5 16
V
VI
 Input voltage

-0.5 VCC
V
VO
 Output voltage

-0.5 VCC+2
V
IOp
 Allowable motor rush current

tON 5sec, duty of 10% or less
±700
mA
IO
 Continuous output current

However, Pd must not exceed the maximum rating
±200
mA
Pd
 Power dissipation

When mounted in board
1.14
W
Topr
 Operating temperature

-20 75
°C
Tstg
 Storage temperature

-40 125
°C
Symbol
Parameter
Conditions
Ratings
Unit
VCC
 Supply voltage

-0.5 16
V
VI
 Input voltage

-0.5 VCC
V
VO
 Output voltage

-0.5 VCC+2
V
IOp
 Allowable motor rush current

tON 5sec, duty of 10% or less
±700
mA
IO
 Continuous output current

However, Pd must not exceed the maximum rating
±200
mA
Pd
 Power dissipation

Ta = 50°C, when mounted in glass epoxy board
1.14
W
Topr
 Operating temperature

-20 75
°C
Tstg
 Storage temperature

-40 125
°C



Description

The M54687FP is a semiconductor integrated circuit that is capable of directly controlling the rotating direction and rotating speed of a smallsize bi-directional motor rotating in both forward and reverse directions.
