Part Number: M5M28F101AFP



MFG: MITSVBISHI

Package Cooled: N/A

D/C: N/A

Description: The MITSUBISHI M5M28F101A is high-speed 1048576-bit CMOS Flash Memories. This is suitable for the appl...


Urgent Purchase

M5M28F101AFP General Description


The MITSUBISHI M5M28F101A is high-speed 1048576-bit CMOS Flash Memories. This is suitable for the applications with microprocessor or micro-controller where on-board reprogramming is required. The M5M28F101A is fabricated by N-channel double polysilicon gate for memory and CMOS technology for peripheral circuits, and is available in 32pin plastic molded packages.

M5M28F101AFP Maximum Ratings

Symbol
Parameter
Conditions
Ratings
Unit
V11 All input or output voltage except VPP/A9 With respect to Ground
-0.6to7
V
V12 VPP supply voltage
-0.6to14.0
V
V13 A9 supply voltage
-0.6to13.5
V
Topr Operating temperature
-10to80
°C
Tstg Storage temperature
-65to125
°C

M5M28F101AFP Features

·Speed item ........................................................ 85 ns (max.)
                      .......................................................100 ns (max.)
·Power supply voltage ................................... VCC = 5V±0.5V
·Write and erase voltage ..............................VPP = 12V±0.6V
·Byte program and Chip erase
·Auto program and Auto erase
·Program/erase operation controlled by software command
·Program/erase pulse controlled by an embedded timer
·10000 program/erase cycles
·Tri-state output buffer
·TTL-compatible input and output in read and write mode
·Contained device-identifier code
·Incorporated data-protection
·Available packaging for Surface Mount

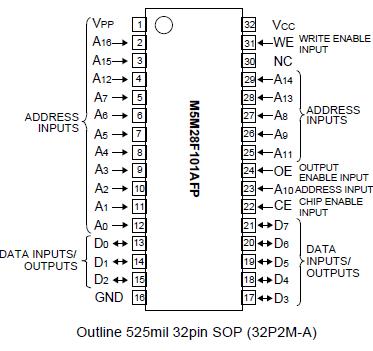

M5M28F101AFP Connection Diagram

M5M28F101AFP Connection Diagram

M5M28F101AFP datasheet

M5M28F101AFP
PDF/DataSheet Download

  • Datasheet: M5M28F101AFP
  • File Size: 99010 KB
  • Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
  • Click here to Download
