Part Number: M5M29GB640VP



MFG: MITSUBISHI

Package Cooled: TSOP48

D/C: 2005+



Urgent Purchase

M5M29GB640VP Maximum Ratings

Operating Temperature
During Read, Sector Erase, Word/Byte
Write . . . . . . . . . . . . . . . . . . . . . . . . . -40oC to +85oC
Storage Temperature . . . . . . . . . . . . . .-65oC to +125oC
Voltage on Any Pin (except VCC and
VPP with respect to GND) . . . . . . . . . . .-0.5 V to +5V(1)
VCC Supply Voltage . . . . . . . . . . . . .-0.2V to +4.6V(2)
VPP Supply Voltage (for sector erase and
VPP with respect to GND) . . . . . . . .-0.5V to +13.5V(1,2,4)
VCC and VCCQ Supply Voltage
with respect to GND. . . . . . . . . . . . . . . . .-0.2V to +5.0V(1)
Output Short Circuit Voltage . . . . . . . . . . . . .100mA(3)

M5M29GB640VP Features

• Single power supply operation
   - 3.0V only operation for read, erase and program operation
   - VCC=VPP=2.7~3.6V
   - VCC=12 fast production programming
   - 1.65V~2.5V or 2.7V~3.6V I/O Option (VCCQ)
   - Operating temperature:-40°C~85°C
• Fast access time : 90/120ns
• Low power consumption
   - 9mA maximum active read current, f=5MHz (CMOS input)
   - 21mA program erase current maximum(VPP=1.65~3.6V)
   - 7uA typical standby current under power saving mode
• Sector architecture
   - Sector Erase (Sector structure : 4Kword x 2 (boot sectors), 4Kword x 6 (parameter sectors), 32Kword x7 (parameter sectors)
   - Top Boot
• Auto Erase (chip & sector) and Auto Program
   - Automatically program and verify data at specified address
• Automatic Suspend Enhance
   - Word/byte write suspend to read
   - Sector erase suspend to word/byte write
   -  Sector erase suspend to read register report
• Automatic sector erase, full chip erase, word write and sector lock/unlock configuration
• Status Reply
   - Detection of program and erase operation completion.
   - Command User Interface (CUI)
   - Status Register (SR)
• Data Protection Performance
   - Include boot sectors and parameter and main sectors to be block/unblock
• 100,000 minimum erase/program cycles
• Common Flash Interface (CFI)
• 64-bit Protection Register
   Latch-up protected to 100mA from -1V to VCC+1V

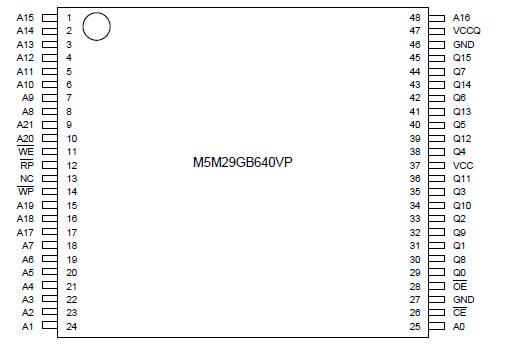

M5M29GB640VP Connection Diagram

M5M29GB640VP Connection Diagram

M5M29GB640VP datasheet

M5M29GB640VP
PDF/DataSheet Download

Find M5M29GB640VP Suppliers
