Product Details

Description



Features:

Access time      Random   70ns (Max.)
                         Page       25ns(Max.)
Supply voltage                 VCC= 3.0 ~ 3.6V
Ambient temperature       Ta=-40 ~ 85 °C
Package            52pin TSOP(Type-II), Lead pitch 0.4mm
                         Outer-lead finishing : Sn-Cu

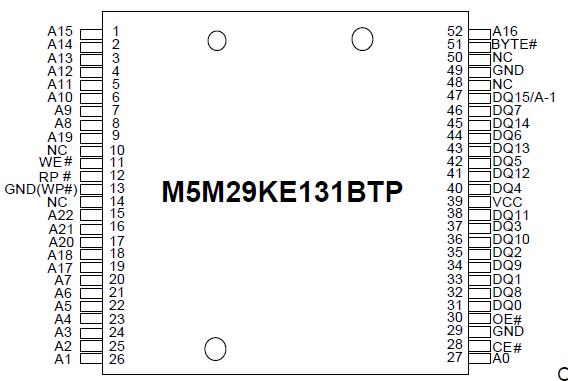

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC VCC Voltage With Respect to GND
-0.2to4.6
V
V11 All input or output voltage1)
-0.6to4.6
V
Ta Ambient Temperature
-40to85
°C
Tbs Temperature under Bias
-50to95
°C
Tstg Storage temperature
-65to125
°C
Iout Output Short Circuit Current
0to100
mA
1)Minimum DC voltage is 0.6V on input / output pins. During transitions, the level may undershoot to 2.0V for periods<20ns. Maximum DC voltage on input / output pins is VCC+0.5V which, during transitions, may overshoot to VCC+1.5V for periods <20ns.


Description

The M5M29KE131BTP is a Stacked micro Multi Chip Package that contents 2 Dies of 64M-bit Flash memory in a 52-pin TSOP(II) for lead free use.

128M-bit Flash memory is a 16,777,216 bytes / 8,388,608 words, single power supply and high performance nonvolatile memory fabricated by CMOS technology for the peripheral circuit and DINOR IV (Divided bit-line NOR IV) architecture for the memory cell. All memory blocks are locked and can not be programmed or erased, when WP# is
Low. Using Software Lock Release function, program or erase operation can be executed.

The M5M29KE131BTP is suitable for a high performance cellular phone and a mobile PC that are required to be small mounting area, weight and small power dissipation.
