Purchase M5M4V64S20ATP -10, In-stock M5M4V64S20ATP -10 From SeekIC.
Part Number: M5M4V64S20ATP -10
Description: The M5M4V64S20ATP is a 4-bank x 4194304-word x 4-bit Synchronous DRAM, with LVTTL interface. All input...
- Table of contents:
M5M4V64S20ATP -10
-
Suppliers
DataSheet
General Description
M5M4V64S20ATP -10 General Description
The M5M4V64S20ATP is a 4-bank x 4194304-word x 4-bit Synchronous DRAM, with LVTTL interface. All inputs and outputs are referenced to the rising edge of CLK. The M5M4V64S20ATP achieves very high speed data rate up to 125MHz, and is suitable for main memory or graphic memory in computer systems.
M5M4V64S20ATP -10 Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
Vdd |
Supply Voltage |
with respect to Vss |
-0.5 ~ 4.6 |
V |
|
VddQ |
Supply Voltage for Output |
with respect to VssQ |
-0.5 ~ 4.6 |
V |
|
VI |
Input Voltage |
with respect to Vss |
-0.5 ~ Vdd+0.5 |
V |
|
VO |
Output Voltage |
with respect to VssQ |
-0.5 ~ VddQ+0.5 |
V |
|
IO |
Output Current |
50 |
mA | |
|
Pd |
Power Dissipation |
Ta = 25 °C |
1000 |
mW |
|
Topr |
Operating Temperature |
0 ~ 70 |
°C | |
|
Tstg |
Storage Temperature |
-65 ~ 150 |
°C |
M5M4V64S20ATP -10 Features
- Single 3.3v±0.3v power supply
- Clock frequency 125MHz /100MHz
- Fully synchronous operation referenced to clock rising edge
- 4 bank operation controlled by BA0, BA1 (Bank Address)
- /CAS latency- 2/3 (programmable)
- Burst length- 1/2/4/8/Full Page (programmable)
- Burst type- sequential / interleave (programmable)
- Column access - random
- Burst Write / Single Write (programmable)
- Auto precharge / All bank precharge controlled by A10
- Auto refresh and Self refresh
- 4096 refresh cycles /64ms
- Column address A0-A9
- LVTTL Interface
- 400-mil, 54-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch
- Clock frequency 125MHz /100MHz
- Fully synchronous operation referenced to clock rising edge
- 4 bank operation controlled by BA0, BA1 (Bank Address)
- /CAS latency- 2/3 (programmable)
- Burst length- 1/2/4/8/Full Page (programmable)
- Burst type- sequential / interleave (programmable)
- Column access - random
- Burst Write / Single Write (programmable)
- Auto precharge / All bank precharge controlled by A10
- Auto refresh and Self refresh
- 4096 refresh cycles /64ms
- Column address A0-A9
- LVTTL Interface
- 400-mil, 54-pin Thin Small Outline Package (TSOP II) with 0.8mm lead pitch

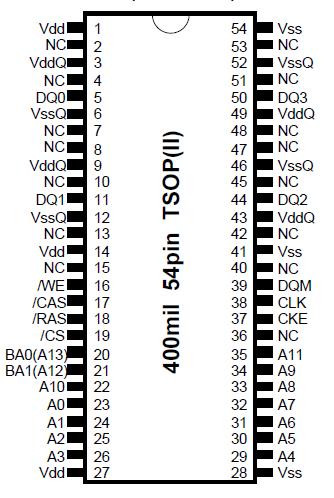

M5M4V64S20ATP -10 Connection Diagram
M5M1
PDF/DataSheet Download
- Datasheet: M5M1
- File Size: 183622 KB
- Manufacturer: ETC [ETC]
- Click here to Download
