Part Number: M5M51008BKV-70VL
Description: The M5M51008BFP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which ...
- Table of contents:
M5M51008BKV-70VL
-
Suppliers
DataSheet
General Description
M5M51008BKV-70VL General Description
The M5M51008BFP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are fabricated using high-performance triple polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery result in a high density and low power static RAM.
They are low standby current and low operation current and ideal for the battery back-up application.
The M5M51008BVP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD).Two types of devices are available. VP,KV(normal lead bend type package),RV,KR(reverse lead bend type package). Using both types of devices, it becomes very easy to design a printed circuit board.
M5M51008BKV-70VL Maximum Ratings
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
| Vcc |
Supply voltage | With respect to GND |
0.3*~7 |
V |
| VI |
Input voltage |
0.3*~Vcc + 0.3 (Max 4.6) |
V | |
| VO |
Output voltage |
0 ~ Vcc |
V | |
| Pd | Power dissipation | Ta=25°C |
700 |
mW |
| Topr | Operating temperature |
40 ~ 85 |
°C | |
| Tstg | Storage temperature |
65 ~ 150 |
°C |
M5M51008BKV-70VL Features
Low stand-by current 0.3µA (typ.)
Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
OE prevents data contention in the I/O bus
Common data I/O
Package
M5M51008BFP ```````````` 32pin 525mil SOP
M5M51008BVP,RV ```````````` 32pin 8 X 20 mm2 TSOP
M5M51008BKV,KR ```````````` 32pin 8 X 13.4 mm2 TSOP
Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
OE prevents data contention in the I/O bus
Common data I/O
Package
M5M51008BFP ```````````` 32pin 525mil SOP
M5M51008BVP,RV ```````````` 32pin 8 X 20 mm2 TSOP
M5M51008BKV,KR ```````````` 32pin 8 X 13.4 mm2 TSOP
M5M51008BKV-70VL Typical Application
Small capacity memory units

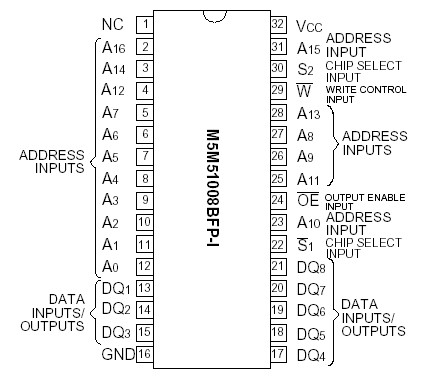

M5M51008BKV-70VL Connection Diagram
