M5M51008BP-55L

Features: Single +5V power supply Low stand-by current 0.3µA (typ.) Directly TTL compatible : All inputs and outputs Easy memory expansion and power down by S1,S2 Data hold on +2V power supply Three-state outputs : OR - tie capabilityOE prevents data contention in the I/O bus Common data I/...

product image

M5M51008BP-55L Picture
See larger image
SeekIC No. : 004406248 Detail

M5M51008BP-55L: Features: Single +5V power supply Low stand-by current 0.3µA (typ.) Directly TTL compatible : All inputs and outputs Easy memory expansion and power down by S1,S2 Data hold on +2V power suppl...

M5M51008BP-55L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M51008BP-55L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single +5V power supply
Low stand-by current 0.3µA (typ.)
Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
 OE prevents data contention in the I/O bus
Common data I/O
Package
    M5M51008BP ```````````` 32pin 600mil DIP
    M5M51008BFP ```````````` 32pin 525mil SOP
    M5M51008BVP,RV ```````````` 32pin 8 X 20 mm2 TSOP
    M5M51008BKV,KR ```````````` 32pin 8 X 13.4 mm2 TSOP


Application

Small capacity memory units

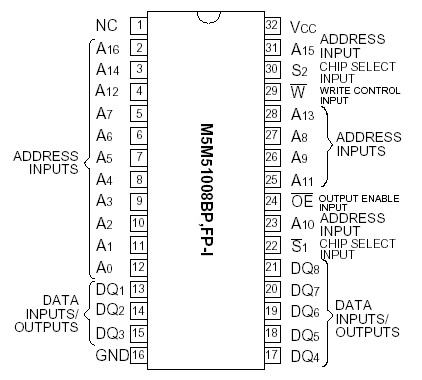

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc
 Supply voltage With respect to GND
0.3*~7
V
VI
 Input voltage
0.3* ~ Vcc + 0.3
V
VO
 Output voltage
0 ~ Vcc
V
Pd Power dissipation Ta=25°C
700
mW
Topr Operating temperature

40 ~ 85
°C
Tstg Storage temperature
65 ~ 150
°C



Description

The M5M51008BP,FP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are fabricated using high-performance triple polysilicon CMOS technology. The use of resistive load NMOS cells and CMOS periphery result in a high density and low power static RAM.

They are low standby current and low operation current and ideal for the battery back-up application.

The M5M51008BVP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD).Two types of devices are available. VP,KV(normal lead bend type package),RV,KR(reverse lead bend type package). Using both types of devices, it becomes very easy to design a printed circuit board.
