Part Number: M5M51008VP
Package Cooled: N/A
Description: The M5M51008CP,FP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit whic...
- Table of contents:
M5M51008VP
-
Suppliers
DataSheet
General Description
M5M51008VP General Description
The M5M51008CP,FP,VP,RV,KV,KR are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are fabricated using high-performance quadruple-polysilicon and double metal CMOS technology. The use of thin film transistor TFT) load cells and CMOS periphery result in a high density and low power static RAM.
They are low standby current and low operation current and ideal for the battery back-up application.
The M5M51008CVP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD). Two types of devices are available. M5M51008CVP,KV(normal lead bend type package), M5M51008CRV,KR(reverse lead bend type package).Using both types of devices, it becomes very easy to design a printed circuit board.
M5M51008VP Maximum Ratings
| Symbol | Parameter | Conditions | Ratings | Unit |
| Vcc | Supply Voltage | With respect to GND | 0.3*~7 | V |
| VI | Input Voltage | 0.3*~Vcc + 0.3 | V | |
| VO | Output Voltage | 0~Vcc | V | |
| Pd | Power Dissipation | Ta = 25 °C | 700 | mW |
| Topr | Operating Temperature | 0~70 | °C | |
| Tstg | Storage Temperature | -65 ~ 150 | °C |
M5M51008VP Features
Low stand-by current 0.1µA (typ.)
Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
OE prevents data contention in the I/O bus
Common data I/O
Package
M5M51008CP ```````````` 32pin 600mil DIP
M5M51008CFP ```````````` 32pin 525mil SOP
M5M51008CVP,RV ```````````` 32pin 8 X 20 2mm TSOP
M5M51008CKV,KR ```````````` 32pin 8 X 13.4 2mm TSOP
Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
OE prevents data contention in the I/O bus
Common data I/O
Package
M5M51008CP ```````````` 32pin 600mil DIP
M5M51008CFP ```````````` 32pin 525mil SOP
M5M51008CVP,RV ```````````` 32pin 8 X 20 2mm TSOP
M5M51008CKV,KR ```````````` 32pin 8 X 13.4 2mm TSOP
M5M51008VP Typical Application
Small capacity memory units

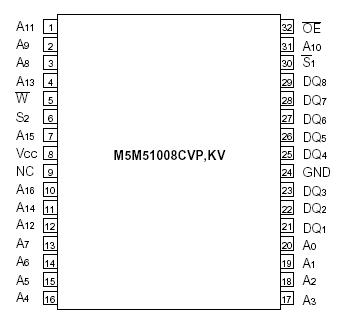

M5M51008VP Connection Diagram
M5M51008VP
PDF/DataSheet Download
- Datasheet: M5M51008VP
- File Size: 89723 KB
- Manufacturer: Mitsubishi
- Click here to Download
