M5M5V108DKV-70H

Features: Directly TTL compatible : All inputs and outputsEasy memory expansion and power down by S1,S2Data hold on +2V power supplyThree-state outputs : OR - tie capabilityOE prevents data contention in the I/O busCommon data I/OPackage M5M5V108DFP ```````````` 32pin 525mil SOP M5M5V108DVP,RV ```...

product image

M5M5V108DKV-70H Picture
See larger image
SeekIC No. : 004406324 Detail

M5M5V108DKV-70H: Features: Directly TTL compatible : All inputs and outputsEasy memory expansion and power down by S1,S2Data hold on +2V power supplyThree-state outputs : OR - tie capabilityOE prevents data contenti...

M5M5V108DKV-70H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5M5V108DKV-70H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Directly TTL compatible : All inputs and outputs
Easy memory expansion and power down by S1,S2
Data hold on +2V power supply
Three-state outputs : OR - tie capability
OE prevents data contention in the I/O bus
Common data I/O
Package
  M5M5V108DFP ```````````` 32pin 525mil SOP
  M5M5V108DVP,RV ```````````` 32pin 8 X 20 mm2 TSOP
  M5M5V108DKV,KR ```````````` 32pin 8 X 13.4 mm2 TSOP


Application

Small capacity memory units

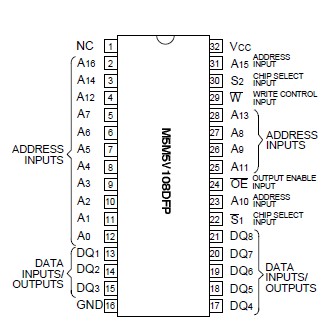

Pinout

Connection Diagram


Specifications

Symbol Parameter Conditions Ratings Unit
Vcc Supply voltage




 With respect to GND 0.3*~4.6 V
VI


 Input voltage 0.3*~Vcc + 0.3
(Max 4.6)		 V
VO Output voltage 0~Vcc V
Pd
 Power dissipation Ta=25 700 mW
Topr Operating temperature   0~70
Tstg Storage temperature   65~150
* 3.0V in case of AC ( Pulse width  30ns )


Description

The M5M5V108DFP,VP,KV are a 1048576-bit CMOS static RAM organized as 131072 word by 8-bit which are  fabricated using highperformance triple-polysilicon and double metal CMOS technology.The use of thin film transistor (TFT) load cells and CMOS periphery result in a high density and low power static RAM.

They are low standby current and low operation current and ideal for the battery back-up application.

The M5M5V108DVP,KV are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD).
