General Description
M5M5V208KR General Description
The M5M5V208 is 2,097,152-bit CMOS static RAM organized as 262,144-words by 8-bit which is fabricated using high-performance quadruple-polysilicon and double metal CMOS technology. The use of thin film transistor(TFT) load cells and CMOS periphery results in a high density and low power static RAM. The M5M5V208 is designed for memory applications where high reliability, large storage, simple interfacing and battery back-up are important design objectives.
The M5M5V208VP,RV,KV,KR are packaged in a 32-pin thin small outline package which is a high reliability and high density surface mount device(SMD).Two types of devices are available. VP,KV(normal lead bend type package),RV,KR(reverse lead bend type package). Using both types of devices, it becomes very easy to design a printed circuit board.
M5M5V208KR Maximum Ratings
|
Symbol |
Rating |
Conditions |
Ratings |
Unit |
|
Vcc |
ambient temperature |
With respect to GND |
0.5*~4.6 |
V |
|
VI |
Input voltage |
0.5* ~ Vcc + 0.5 (Max 4.6) |
V | |
|
VO |
Output voltage |
0 ~ Vcc |
V | |
|
Pd |
Power dissipation |
Ta=25 |
700 |
mW |
|
Topr |
Operating temperature |
0 ~ 70 |
||
|
Tstr |
Storage temperature |
65 ~1 |
* 3.0V in case of AC ( Pulse width 30ns )
M5M5V208KR Features
• Single 2.7 ~ 3.6V power supply
• Operating temperature of 0 to +70
• No clocks, No refresh
• All inputs and outputs are TTL compatible.
• Easy memory expansion and power down by S1 & S2
• Data retention supply voltage=2.0V
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Common Data I/O
• Battery backup capability
• Small stand-by current ` ` ` ` ` ` ` ` ` ` 0.3A(typ.)
• Operating temperature of 0 to +70
• No clocks, No refresh
• All inputs and outputs are TTL compatible.
• Easy memory expansion and power down by S1 & S2
• Data retention supply voltage=2.0V
• Three-state outputs: OR-tie capability
• OE prevents data contention in the I/O bus
• Common Data I/O
• Battery backup capability
• Small stand-by current ` ` ` ` ` ` ` ` ` ` 0.3A(typ.)
M5M5V208KR Typical Application
Small capacity memory units
Battery operating system
Handheld communiation tools
Battery operating system
Handheld communiation tools

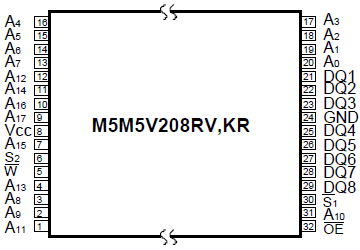

M5M5V208KR Connection Diagram
M5M5V208KR-10L
PDF/DataSheet Download
- Datasheet: M5M5V208KR-10L
- File Size: 78191 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
