Part Number: M5M5W816TP-85HI
Description: The M5M5W816TP is a f amily of low v oltage 8-Mbit static RAMs organized as 524288-words by 16-bit, f ...
- Table of contents:
M5M5W816TP-85HI
-
Suppliers
DataSheet
General Description
M5M5W816TP-85HI General Description
The M5M5W816TP is a f amily of low v oltage 8-Mbit static RAMs organized as 524288-words by 16-bit, f abricated by Mitsubishi's high-perf ormance 0.18µm CMOS technology .
The M5M5W816TP is suitable f or memory applications where a simple interf acing , battery operating and battery backup are the important design objectiv es.
The M5M5W816TP is packaged in a 44pin thin small outline mount dev ice, with the outline of 400mil TSOP TYPE(II). It giv es the best solution f or a compaction of mounting area as well as f lexibility of wiring pattern of printed circuit boards.
The operating temperature range is -40~+85°C
M5M5W816TP-85HI Maximum Ratings
| Symbol | Parameter | Conditions | Ratings | Unit |
| Vcc | Supply Voltage | With respect to GND | -0.3* ~ +4.6 | V |
| VI | Input v oltage | With respect to GND | -0.3* ~ Vcc + 0.3 (max. 4.6V) | |
| VO | Output Voltage | With respect to GND | 0 ~ Vcc | |
| Pd | Power Dissipation | Ta= 25°C | 700 | mW |
| Ta | Operating Temperature | - 40 ~ +85 | °C | |
| Tstg | Storage Temperature | - 65 ~ +150 | °C |
M5M5W816TP-85HI Features
- Single 2.7~3.0V power supply
- Small stand-by current: 0.2µA (3.0V, ty p.)
- No clocks, No ref resh
- Data retention supply v oltage =2.0V
- All inputs and outputs are TTL compatible.
- Easy memory expansion by S#, BC1# and BC2#
- Common Data I/O
- Three-state outputs: OR-tie capability
- OE# prev ents data contention in the I/O bus
- Process technology : 0.18µm CMOS
- Package: 44pin 400mil TSOP TYPE(II)
- Small stand-by current: 0.2µA (3.0V, ty p.)
- No clocks, No ref resh
- Data retention supply v oltage =2.0V
- All inputs and outputs are TTL compatible.
- Easy memory expansion by S#, BC1# and BC2#
- Common Data I/O
- Three-state outputs: OR-tie capability
- OE# prev ents data contention in the I/O bus
- Process technology : 0.18µm CMOS
- Package: 44pin 400mil TSOP TYPE(II)

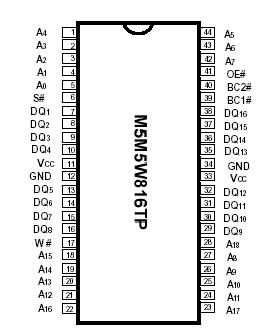

M5M5W816TP-85HI Connection Diagram
M5M5W816TP-85HI
PDF/DataSheet Download
- Datasheet: M5M5W816TP-85HI
- File Size: 70346 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
