M63013FP

Features: This IC is 1 chip driver IC for spindle motor and 4 channel actuators. All of the motor and actuator of optical disk drivesystem (CD-ROM etc.) can be drived by only this IC.This IC has current control drive system for Focus, Tracking,Spindle and Slide channel drive, also has a direct PWM...

product image

M63013FP Picture
See larger image
SeekIC No. : 004406681 Detail

M63013FP: Features: This IC is 1 chip driver IC for spindle motor and 4 channel actuators. All of the motor and actuator of optical disk drivesystem (CD-ROM etc.) can be drived by only this IC.This IC has cur...

M63013FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M63013FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

This IC is 1 chip driver IC for spindle motor and 4 channel actuators. All of the motor and actuator of optical disk drive
system (CD-ROM etc.) can be drived by only this IC.

This IC has current control drive system for Focus, Tracking,Spindle and Slide channel drive, also has a direct PWM
control system for Spindle and Slide channels drive due to reducing IC power dissipation.

This IC has three voltage supply terminals (for Spindle,Slide/Loading and Focus/Tracking) , and these voltage supply can be set separately.

Further more this IC has an operational amplifier for Slide input, FG amplifier, thermal shut down circuit, standby circuit,channel select function, reverse rotation detect circuit and Short braking select




Application

CD-ROM, DVD, DVD-ROM, DVD-RAM ,Optical disc related system,etc


Pinout

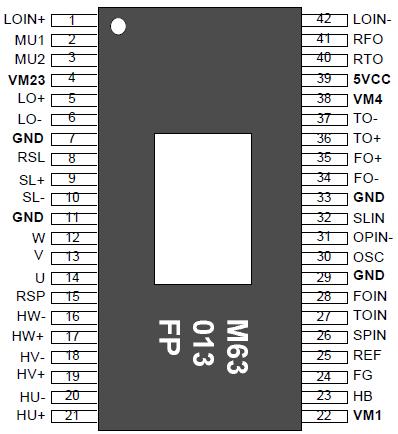

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Rating
Unit
5VCC
 5V power supply
7
V
VM1
 Motor power supply 1 Spindle power supply
15
V
VM23
 Motor power supply 23 Slide and Loading power supply
15
V
VM4
 Motor power supply 4 Focus and Tracking power supply
15
V
IoA
 Motor Output Current A Focus,Tracking and Loading output current note1
1.2
A
IoB
 Motor Output Current B

Spindle and Slide output current
note1

1.0
A
Vin
 Maximum input voltage
of terminals		 MU1,MU2,Hw-,Hw+,Hv-,Hv+,Hu-,Hu+,REF,
SPIN,TOIN,FOIN,OSC,SLIN,LOIN-,LOIN+
0to5VCC
V
Pt
 Power dissipation Free Air and on the grass epoxy board
2.6
W
K
Thermal derating Free Air and on the grass epoxy board
20.8
mW/
Tj
 Junction temperature
150
Topr
 Operating temperature
-20to+75
Tstg
 Storage temperature
-40to+150

*note1 ; The ICs must be operated within the Pt (power dissipation) or the area of safety operation
              The spindle and slide output terminal is needed external shottky diode between each output and GND when it is used above 0.6A. Discription(IoA) is case of with external shottky diode.
