Features: • Y/C processor : 8bit Input, 10bit Output digital processing
• Deflection processor : optimized system by conventional analog and digital mixed solution
• ADC&DAC : 8bit high speed video ADC & 10bit high speed video DAC
[MCU Block]
MCU(single microcomputer) in this IC has almost same function and performance as M37272MA-XXXSP/FP in mass-production.
And it is operated by simple instruction in the same memory space as that of built-in ROM, RAM, I/O.
It has a OSD, data slicer , and I2C-BUS interface. So it is very useful for a channel selection system for NTSC TV with a closed caption decoder.
[ASIC Block]
ASIC block consists of the following blocks.
(1) Analog frontend block ; Analog SW(2 CVBS(TV&EXT) inputs, Y/C signals to one signal, 2 channels 8 bit high speed video ADCs,and ACC amplifiers
(2) Video and Chroma block ; A high performance 2 line adaptive YC separation by 1 line memory, Video blocks including sharpness,YNR, a high performance blackstretch circuits, Chroma decoder, and RGB matrix including OSD mixing circuit.
(3) Deflection block ; A high performance sync separation by analog and digital mixed solution
(4) Analog backend block ; 3 channels 10 bit high speed video DACs for Cutoff & Drive, and Mute circuit.

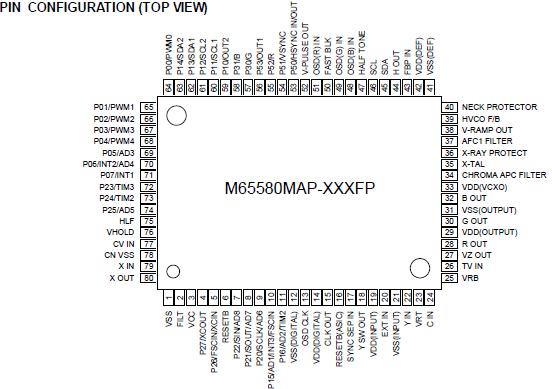

ApplicationNTSC TV with a closed caption decoderPinout
Specifications
|
Symbol |
Parameter |
Conditions |
Ratings |
Unit |
|
VDD(MCU) |
Supply voltage (MCU) |
All voltage are based on
Vss.Output transistors are cut off. |
-0.3 to 6.0 |
V |
|
VDD(ASIC5V) |
Supply voltage (ASIC5V) |
-0.3 to 6.0 |
V |
|
VDD(ASIC3.3V) |
Supply voltage (ASIC3.3V) |
-0.3 to 4.0 |
V |
|
VI(MCU) |
Input Voltage (MCU) |
-0.3 to Vcc+0.3 |
V |
|
VO(MCU) |
Output Voltage (MCU) |
-0.3 to Vcc+0.3 |
V |
|
IOH(MCU) |
Circuit current (MCU) |
|
0 to 1 (See note 1) |
mA |
|
IOL1(MCU) |
Circuit current (P00-P07, P10, P15,
P16, P20-P27, P30, P31, P52, P53) |
|
0 to 2 (See note 2) |
mA |
|
IOL2(MCU) |
Circuit current (P11-P14) |
|
0 to 6 (See note 2) |
mA |
|
VID(ASIC) |
Digital input voltage |
|
-0.3 to Vcc+0.3 |
V |
|
IOUT(ASIC) |
Analog output current |
|
-30 |
mA |
|
Pd |
Power dissipation |
|
1460 |
mW |
|
Kt |
Thermal derating |
|
14.6 |
mW/ °C |
|
Topr |
Operating temperature |
|
-20 to 65 |
°C |
|
Tstg |
Storage temperature |
|
-40 to 125 |
°C |
DescriptionThe M65580MAP-XXXFP are semiconductor integrated circuits designed with CMOS silicon gate technology for NTSC television system, include 8bit MCU( M37272MA core) with a closed caption decoder and circuits needed for TV baseband signals(Video and Chroma) processor and Deflection in a chip. PCB area and EMI noise can be reduced by one chip and 80QFP, and internal connection of OSD signals. And it can realize a adjustment free system by built-in MCU and get a high performance adaptive YC separation by 1 line memory. The above technology makes its performance more stable and better.
M65580MAP-XXXFP Data Sheet
