Part Number: M65849BFP
MFG: MIT
Description: The M65849BFP is a CMOS IC built-in Digital circuit and mixing amplifiers.It is suitable for adding effects to ...
- Table of contents:
M65849BFP
-
Suppliers
DataSheet
General Description
M65849BFP General Description
The M65849BFP is a CMOS IC built-in Digital circuit and mixing amplifiers.
It is suitable for adding effects to Mini Stereo, CD-Radio Cassette and TV.
This COMS IC can be used dolby surround.
M65849BFP Maximum Ratings
|
Symbol |
parameter |
Ratings |
Unit |
|
Vcc |
Supply Voltage |
6 |
V |
|
Icc |
Circuit current |
50 |
mA |
|
Pd |
Input Voltage |
325 |
mW |
|
Topr |
Operating temperature |
-20to75 |
|
|
Tstg |
Storage Temperatare |
-40to125 |
M65849BFP Features
•Built-in digital delay , mixing amplifiers,input output selector achieve a surround system with a single chip .
•Delay volume , feedback volume Built-in
•ADM digital delay ,16kbit SRAM Built-in
•Selection of delay time in a range between 9.2msec and 196.6msec 8 increments.
•32 pin SSOP package (32P2U-B)
•Built-in automatic reset circuit activated with power on
•5V single power supply
•Delay volume , feedback volume Built-in
•ADM digital delay ,16kbit SRAM Built-in
•Selection of delay time in a range between 9.2msec and 196.6msec 8 increments.
•32 pin SSOP package (32P2U-B)
•Built-in automatic reset circuit activated with power on
•5V single power supply

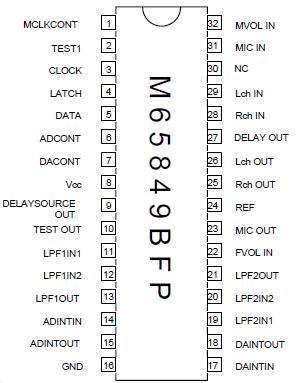

M65849BFP Connection Diagram
M65849BFP
PDF/DataSheet Download
- Datasheet: M65849BFP
- File Size: 86475 KB
- Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
- Click here to Download
