MFG:N/A Package Cooled:NA/ D/C:09+
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: The M65850P/FP is a CMOS IC for generating echo to be added to the voice through a "karaoke" microphon...
The M65850P/FP is a CMOS IC for generating echo to be added to the voice through a "karaoke" microphone.
It is optimal to provide the echo effect function for karaoke player, such as radio cassette recorders, mini audio components and television sets.
Increased master clock frequency assures high-performance short delay,enabling the IC to be used for dolby prologic surround system.
|
Symbol |
parameter |
Ratings |
Unit |
|
Vcc |
Supply Voltage |
6.0 |
V |
|
Icc |
Circuit current |
100 |
mA |
|
Pd |
Power dissipation |
800(P),550(FP)
|
mW
|
|
Topr |
Operating temperature |
-20to75 |
|
|
Tstg |
Storage Temperatare |
-40to125 |
• Built-in input/output filters, A-D and D-A converters,and memory realize a delay system with only a single chip.
• Built-in current control type clock oscillator circuit avoids clock affection outside,thus allowing prevention of undesired radiation.
• Delay time = 164 ms (with master clock set at 1MHz)
(Selection of delay time in a range between 15ms and 200ms)

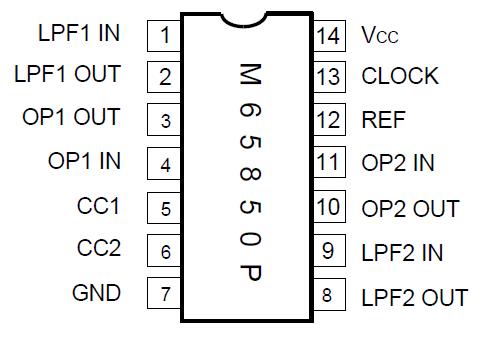

• Small package (14-pin DIP : 14P4,16-pin SOP:16P2N)
• Built-in 20Kbit SRAM
• Built-in auto reset circuit (The IC reset as power is turned on)
• Single power supply (5V)
M65850P
