Part Number: M675
Description: The M675 is a VCSO (Voltage Controlled SAW Oscillator) frequency source for low-jitter clock generatio...
- Table of contents:
M675
-
Suppliers
DataSheet
General Description
M675 General Description
The M675 is a VCSO (Voltage Controlled SAW Oscillator) frequency source for low-jitter clock generation. An ntegrated SAW surface acoustic wave) delay line implements the high-Q VCO (voltage controlled oscillator) function, which results in low output phase noise and very low jitter.
The M675-01 is available in a range of center requencies from 125 to 175 MHz. The M675-02 provides 500 to 700 MHz. Guaranteed minimum pull-range of ±100 ppm meets GbE requirements. (It also fully satisfies ±50 ppm minimum pull-range specification commonly required.) Industry-standard Kvco (VCO Gain) provides full replacement compatibility. The M675 is well suited for phase-locked loop implementations, clock and data recovery circuits, and other timing applications in telecom and optical fiber networking systems (e.g., SONET/SDH).
M675 Maximum Ratings
| Symbol | Parameter | Rating | Unit |
| VI | Inputs | -0.5 to VCC +0.5 | V |
| VO | Outputs | -0.5 to VCC +0.5 | V |
| VCC | Power Supply Voltage | 4.6 | V |
| TS | Storage Temperature | -55 to +125 |
Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond those listed in Recommended Conditions of Operation, DC Characteristics, or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
M675 Features
·Integrated SAW device
·M675-01 output frequencies from 125 to 175 MHz M675-02 output frequencies from 500 to 700 MHz (Specify center frequency at time of order)
·Industry-standard Kvco for full compatibility
·Low phase jitter 0.2ps rms typical for the M675-02 (50kHz to 80MHz)
·Differential 3.3V LVPECL output
·Single 3.3V power supply
·Small 5 x 7.5mm SMT (surface mount) package

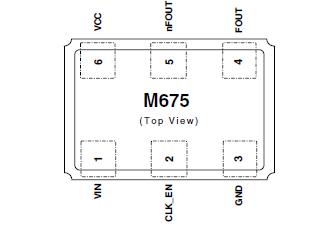

M675 Connection Diagram
M675
PDF/DataSheet Download
- Datasheet: M675
- File Size: 263396 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
