Five Points

Part Number: MAX323



MFG: MAX

Package Cooled: DIP



Description: The MAX323/MAX324/MAX325 are precision, dual,SPST analog switches. They are single-supply devices designed to operate f...


Urgent Purchase

MAX323 General Description


The MAX323/MAX324/MAX325 are precision, dual,SPST analog switches. They are single-supply devices designed to operate from +2.7V to +16V. The MAX323 has two normally open (NO) switches, and the MAX324 has two normally closed (NC) switches. The MAX325 has one NO and one NC switch. Low power consumption (5W) makes these parts ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns   max, tOFF = 100ns max).

When powered from a 5V supply, the MAX323 series offers 2 max matching between channels, 60 max on-resistance, and 6 max RON flatness.

MAX323 Maximum Ratings

Voltage Referenced to GND
V+.......................................................................-0.3V to +17V
IN_, COM_, NC_, NO_ (Note 1)..................-0.3V to (V+ + 0.3V)
Continuous Current (any terminal) .................................30mA
Peak Current, COM_, NO_, NC_
(pulsed at 1ms, 10% duty cycle max) ............................100mA
ESD per Method 3015.7 ................................................>2000V
Continuous Power Dissipation
Plastic DIP (derate 9.09mW/°C above +70°C) ............727mW
Narrow SO (derate 5.88mW/°C above +70°C) ...........471mW
CERDIP (derate 8.00mW/°C above +70°C)..................640mW
MAX (derate 4.10mW/°C above +70°C) .....................330mW
Operating Temperature Ranges
MAX32_C_ _ ........................................................0°C to +70°C
MAX32_E_ _......................................................-40°C to +85°C
MAX32_MJA ....................................................-55°C to +125°C
Storage Temperature Range ..........................-65°C to +150°C
Lead Temperature (soldering, 10sec) .............................+300°C

MAX323 Features

Low On-Resistance (RON), 60½ max (33½ typ)
RON Matching Between Channels <2½
RON Flatness <6½ Max
Guaranteed Charge Injection <5pC
Single-Supply Operation (+2.7V to +16V)
Low Power Consumption, <5W
Low Leakage Current Over Temperature,<2.5nA at +85°C
Fast Switching: tON <150ns, tOFF <100ns
Guaranteed Break-Before-Make (MAX325 only)
TTL/CMOS Logic Compatible

MAX323 Typical Application

Battery-Operated Systems                Sample-and-Hold Circuits
Heads-Up Displays                            Guidance and Control Systems
Audio and Video Switching                Military Radios
Test Equipment                                 Communications Systems
+3V, +5V DACs and ADCs                  PBX, PABX

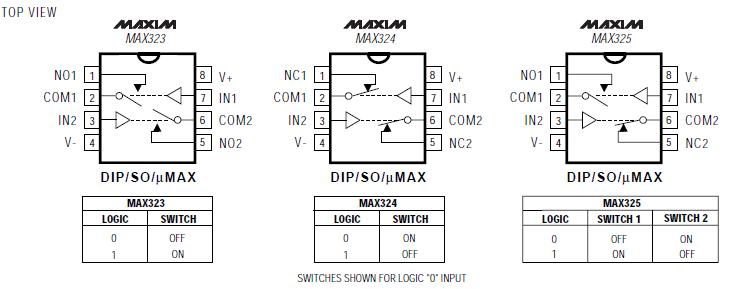

MAX323 Connection Diagram

MAX323 Connection Diagram
PIN NAME FUNCTION
1 NO1 Normally Open Analog Switch Terminal (MAX323/MAX325)
NC1 Normally Closed Analog Switch Terminal (MAX324 only)
2.6 COM1,
COM2		 Analog Switch Common Terminal
3.7 IN2, IN1 Logic Inputs
4 GND Ground
5 NO2 Normally Open Analog Switch Terminal (MAX323 only)
NC2 Normally Closed Analog Switch Terminal (MAX324/MAX325)
8 V+ Positive Supply
