Part Number: MAX3762
Description: The MAX3761/MAX3762 limiting amplifiers, with 4mV sensitivity and PECL data outputs, are optimized for...
- Table of contents:
MAX3762
-
Suppliers
DataSheet
General Description
MAX3762 General Description
The MAX3761/MAX3762 limiting amplifiers, with 4mV sensitivity and PECL data outputs, are optimized for operation in low-cost, 622Mbps, LAN/ATM LAN fiber optics applications.
An integrated power detector senses the input signal's amplitude. A received-signal-strength indicator (RSSI) gives an analog indication of the power level, while the complementary loss-of-signal (LOS) outputs indicate if the input power level exceeds the programmed threshold level. The LOS threshold can be adjusted to detect signal amplitudes between 3mVp-p and 100mVp-p, providing a 15dB LOS adjustment in fiber optic receivers. The LOS outputs have 3.5dB of hysteresis, which prevents chatter when input signal levels are small. The MAX3761's LOS outputs are compatible with TTL-logic levels. The MAX3762 has PECL LOS outputs.
DISABLE and LOS can be used to implement a squelch function, which turns off the data outputs when the input signal is below the programmed threshold.
MAX3762 Maximum Ratings
VCC, VCCO...........................................................-0.5V to +7.0V
FILTER, RSSI, EN, VIN+, VIN-, CZP, CZN,
DISABLE, LOS+, LOS-, INV, VTH...............-0.5V to (VCC + 0.5V)
PECL Output Current (OUT+, OUT-, LOS+, LOS-) ............50mA
Continuous Power Dissipation (TA = +85°C)
QSOP (derate 9.1mW/°C above +85°C)....................591mW
Operating Junction Temperature Range.....-40°C to +150°C
Processing Temperature (die) ...................................+400°C
Storage Temperature Range .....................-65°C to +160°C
Lead Temperature (soldering, 10sec) .......................+300°C
Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MAX3762 Features
`Chatter-Free Power Detector with Programmable Loss-of-Signal Outputs
`4mV Input Sensitivity (PECL Loss-of-Signal Interface Logic-MAX3766
`PECL Data Outputs
`Single 5V Power Supply
`250ps Output Edge Speed
`Low 15ps Pulse-Width Distortion
`TTL Loss-of-Signal Interface Logic-MAX3761
`4mV Input Sensitivity (PECL Loss-of-Signal Interface Logic-MAX3766
`PECL Data Outputs
`Single 5V Power Supply
`250ps Output Edge Speed
`Low 15ps Pulse-Width Distortion
`TTL Loss-of-Signal Interface Logic-MAX3761
MAX3762 Typical Application
·622Mbps LAN/ATM LAN Receivers
·155Mbps LAN/ATM LAN Receivers
·155Mbps LAN/ATM LAN Receivers

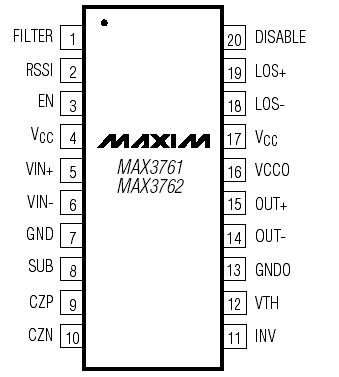

MAX3762 Connection Diagram
MAX3762
