Purchase MAX7446, In-stock MAX7446 From SeekIC.
MFG:MAXIM
Part Number: MAX7446
MFG: MAXIM
Description: The MAX7446 4-channel, buffered video reconstruction filter is ideal for anti-aliasing and DAC-smoothi...
- Table of contents:
MAX7446
-
Suppliers
DataSheet
General Description
MAX7446 General Description
The MAX7446 4-channel, buffered video reconstruction filter is ideal for anti-aliasing and DAC-smoothing video applications or wherever analog video is reconstructed from a digital data stream (such as cable/satellite/terrestrial set top boxes, DVD players, hard disk recorders (HDRs), and personal video recorders (PVRs)). This device operates from a single +5V supply and has a flat passband out to 5MHz with a stopband attenuation of 43dB at 27MHz. This makes it ideal for use with NTSC, PAL, and standard-definition digital TV (SDTV) video systems. Each output is capable of driving two standard 150 video loads.
The MAX7446 processes CVBS and RGB video signals. The video output buffers have a fixed gain of +6dB. The channel for CVBS video has high-frequency boost circuitry that provides picture sharpness with +1.2dB of gain boost without degradation in the stopband. The output video drivers can be disabled with an external pin.
The MAX7446 is available in a 14-pin TSSOP package with an exposed pad, and is specified over the -40°C to +85°C extended temperature range
MAX7446 Maximum Ratings
VCC to GND .............................................................................+6V
All Other Pins to GND.....................................-0.3V to (VCC + 0.3V)
Maximum Current into Any Pin Except VCC and GND .........±50mA
Continuous Power Dissipation (TA = +70°C)
TSSOP-EP (derate 20.8mW/°C above +70°C).............1667mW
Operating Temperature Range ...........................-40°C to +85°C
Storage Temperature Range .............................-65°C to +150°C
Junction Temperature.........................................................+150°C
Lead Temperature (soldering, 10s) ....................................+300°C
All Other Pins to GND.....................................-0.3V to (VCC + 0.3V)
Maximum Current into Any Pin Except VCC and GND .........±50mA
Continuous Power Dissipation (TA = +70°C)
TSSOP-EP (derate 20.8mW/°C above +70°C).............1667mW
Operating Temperature Range ...........................-40°C to +85°C
Storage Temperature Range .............................-65°C to +150°C
Junction Temperature.........................................................+150°C
Lead Temperature (soldering, 10s) ....................................+300°C
MAX7446 Features
` 4-Channel Filter and Buffer for RGB and
CVBS Signals
` Filter Response Ideal for NTSC, PAL, and
Interlaced SDTV Video Signals
` 43dB (typ) Stopband Attenuation at 27MHz
` ±0.75dB (max) Passband Ripple Out to 5MHz
` Blanking Level Voltage on Cable <1V
` Each Channel Drives Two 150 Video Loads
` +5V Single-Supply Voltage
` Small 14-Pin TSSOP Package
CVBS Signals
` Filter Response Ideal for NTSC, PAL, and
Interlaced SDTV Video Signals
` 43dB (typ) Stopband Attenuation at 27MHz
` ±0.75dB (max) Passband Ripple Out to 5MHz
` Blanking Level Voltage on Cable <1V
` Each Channel Drives Two 150 Video Loads
` +5V Single-Supply Voltage
` Small 14-Pin TSSOP Package
MAX7446 Typical Application
·Set-Top Boxes/HDRs
·Desktop Video Editors
·Digital VCRs
·Game Consoles
· DVD Players
·Desktop Video Editors
·Digital VCRs
·Game Consoles
· DVD Players

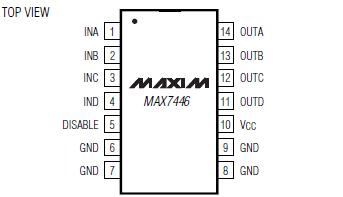

MAX7446 Connection Diagram
MAX7446
