Part Number: MB15C703
Description: MB15C703 is a Phase Locked Loop (PLL) frequency synthesizer of pulse swallow operation with built-in V...
- Table of contents:
MB15C703
-
Suppliers
DataSheet
General Description
MB15C703 General Description
MB15C703 is a Phase Locked Loop (PLL) frequency synthesizer of pulse swallow operation with built-in VCO
suitable for Intermediate Frequency band synthesizer of mobile phones.
The VCO can operate option oscillation frequency by an external inductance and capacitor. The PLL reference divide ratio and comparison divider ratio are fixed so that it is not required to set the divider ratios by a controller externally. BCC-20 plastic package miniaturized the device and makes it easier to design.
It operates with a supply voltage of 2.5 V typ. (PLLVDD, VCOVDD) and low power consumption current 2.5mA typ. is realized by pure-CMOS.
MB15C703 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Power supply voltage | VDD | 0.5 | 4.0 | V |
| Output voltage | VO | -0.5 | VCC+0.5 | V |
| Input voltage | VI | 0.5 | VCC+0.5 | V |
| Output current | IO | 0 | +5.0 | mA |
| Storage temperature | Tstg | 55 | +125 | °C |
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB15C703 Features
• Pulse swallow function (counter type of MB15C103)
• Setting frequency
• Lock detector circuit: Digital lock detector circuit which is "H" level when PLL is locked.
• Low power supply voltage: 2.3 V to 2.7 V
• Low power supply current: 2.5 mA typ. (PLLVDD = VCOVDD = 2.5 V, fvco = 129.55 MHz)
• Wide operating temperature: -20 °C to +85 °C
• High-speed synchronization charge pump (IOH = -4.5 mA, IOL = 4.5 mA at PLLVDD = 2.5 V typ.)
• Oscillation frequency can be arranged by the number of the external circuit.
• Setting frequency
| Setting frequency | Reference frequency |
| 129.55 MHz | 12.8 MHz |
• Low power supply voltage: 2.3 V to 2.7 V
• Low power supply current: 2.5 mA typ. (PLLVDD = VCOVDD = 2.5 V, fvco = 129.55 MHz)
• Wide operating temperature: -20 °C to +85 °C
• High-speed synchronization charge pump (IOH = -4.5 mA, IOL = 4.5 mA at PLLVDD = 2.5 V typ.)
• Oscillation frequency can be arranged by the number of the external circuit.

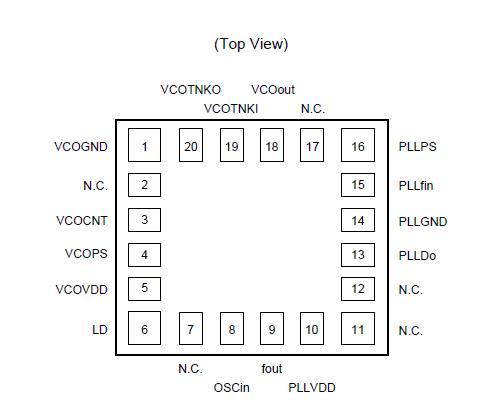

MB15C703 Connection Diagram
MB15C703
