Part Number: MB40578
MFG: FUJISU
Description: The Fujitsu MB40578 is a low power ultra-high speed video A/D converter fabricated with Fujitsu Advanc...
- Table of contents:
MB40578
-
Suppliers
DataSheet
General Description
MB40578 General Description
The Fujitsu MB40578 is a low power ultra-high speed video A/D converter fabricated with Fujitsu Advanced Bipolar Technology. The MB40578 also adopts the fully-parallel comparison technique (flash method) for high speed convertion and can convert wide band analog signal such as video signal to digital signal at a sampling rate of DC through 20 Mega-samples/sec. Because of such high-speed poeration, the MB40578 is suitable for digital video applications such as the digital TV, video processing with computer, or radar signal processing.
MB40578 Maximum Ratings
| Rating | Symbol | Rating | Unit |
| Power Supply Voltage | VCCA VCCD |
0.5 to +7.0 | V |
| Digital input voltage | VIND | 0.5 to +7.0 | V |
| Analog input voltage | VINA | 0.5 to VCC+0.5 | v |
| Analog reference voltage | VRT, VRB | 0.5 to VCC+0.5 | V |
| Storage temperature | TSTG | -55 to +125 | °C |
operation should be restricted to the conditions as detailed in the operational sections of this data sheet.
Exposure to absolute maximum rating conditions for extended periods may affect device reliability
MB40578 Features
• Resolution: 8 bits
• Linearity error: ±0.2% max. (MB40578)
• Maximum conversion rate: 20 MSPS min.
• Analog input voltage: 3.0V to 5.0V
• Digital I/O level: TTL compatible
• Single power supply: +5V
• Power Dissipation: 480mW typ.
• Package: Standard 22-pin DIP Package: Suffix: -P
• Linearity error: ±0.2% max. (MB40578)
• Maximum conversion rate: 20 MSPS min.
• Analog input voltage: 3.0V to 5.0V
• Digital I/O level: TTL compatible
• Single power supply: +5V
• Power Dissipation: 480mW typ.
• Package: Standard 22-pin DIP Package: Suffix: -P

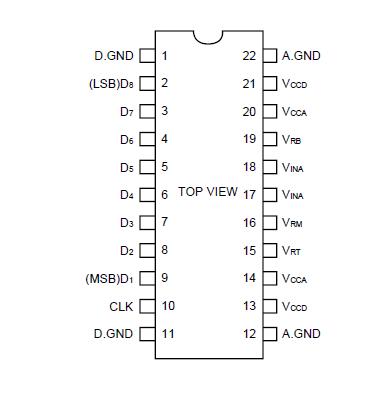

MB40578 Connection Diagram
MB40578
PDF/DataSheet Download
- Datasheet: MB40578
- File Size: 61853 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
