Purchase MB82D01171A-80, In-stock MB82D01171A-80 From SeekIC.
Part Number: MB82D01171A-80
Description: The Fujitsu MB82D01171A is a CMOS Fast Cycle Random Access Memory (FCRAM) with asynchronous Static Ran...
- Table of contents:
MB82D01171A-80
-
Suppliers
DataSheet
General Description
MB82D01171A-80 General Description
The Fujitsu MB82D01171A is a CMOS Fast Cycle Random Access Memory (FCRAM) with asynchronous Static Random Access Memory (SRAM) interface containing 16,777,216 storages accessible in a 16-bit format. This MB82D01171A is suited for low power applications such as Cellular Handset and PDA.
MB82D01171A-80 Maximum Ratings
| Parameter |
Conditions |
Rating |
Units | |
|
Min |
Max | |||
| Voltage of VCCQ Supply Relative to VSS |
VCCQ |
0.5 |
+3.6 |
V |
| Voltage at Any Pin Relative to VSS |
VIN, VOUT |
0.5 |
+3.6 |
V |
| Short Circuit Output Current |
IOUT |
50 |
+50 |
mA |
| Storage Temperature |
TSTG |
55 |
+125 |
°C |
MB82D01171A-80 Features
• Asynchronous SRAM Interface
• 1 M word ´ 16 bit Organization
• Fast Random Cycle Time : tRC = 90 ns
• Fast Random Access Time : tAA = tCE = 80 ns, 85 ns, 90 ns
• Low Power Consumption : IDDS1 = 200 mA, 100 mA (L version) , 70 mA (LL version)
• Wide Operating Conditions : VDD = +2.3 V to +2.7 V
- +2.7 V to +3.1 V
- +3.1 V to +3.5 V
- TA = -30 °C to +85 °C
• Byte Write Control
• 4 words Address Access Capability
• Power Down Control by CE2
• 1 M word ´ 16 bit Organization
• Fast Random Cycle Time : tRC = 90 ns
• Fast Random Access Time : tAA = tCE = 80 ns, 85 ns, 90 ns
• Low Power Consumption : IDDS1 = 200 mA, 100 mA (L version) , 70 mA (LL version)
• Wide Operating Conditions : VDD = +2.3 V to +2.7 V
- +2.7 V to +3.1 V
- +3.1 V to +3.5 V
- TA = -30 °C to +85 °C
• Byte Write Control
• 4 words Address Access Capability
• Power Down Control by CE2

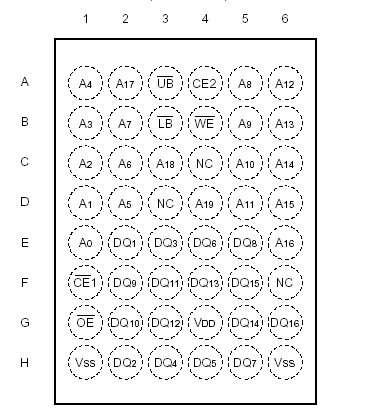

MB82D01171A-80 Connection Diagram
MB82D01171A-80
