MB86604L General Description


The Fujitsu MB86604L is a single-ended transmission type SCSI-II Protocol Controller (SPC) with a single-ended driver/receiver. The MB86604L facilitates interface control between small/medium host computer and peripheral devices (such as a hard disk and printer). The specifications conform to the SCSI-II Standard.

The MB86604L supports high-speed synchronous transfer, the MPU/DMA independent system data bus, and user programmable command set to enable configuration of high-performance systems.

It can also have the phase-to-phase sequence control function to reduce the program overhead of the host MPU. The MB86604L incorporate with a single-ended type SCSI driver/receiver which can drive 48 mA of large-current, and so, the device can be directly connected with the SCSI bus.

The device can operate with +5 V single-power supply and in up to 40 MHz clock frequency. As for package, a 100-pin plastic small quad flat package is available.

MB86604L Maximum Ratings

Parameter Symbol Value Unit
Min. Max.
Power supply voltage VDD VSS 0.5 6.0 V
Input voltage VI VSS 0.5 VDD + 0.5 V
Output voltage VO VSS 0.5 VDD + 0.5 V
Operating ambient temperature Top -25 +85 °C
Storage temperature Tstg 40 +125 °C

MB86604L Features

SCSI Bus Interface:
• Conforming to the SCSI-II standard
• Operatable as Initiator and target

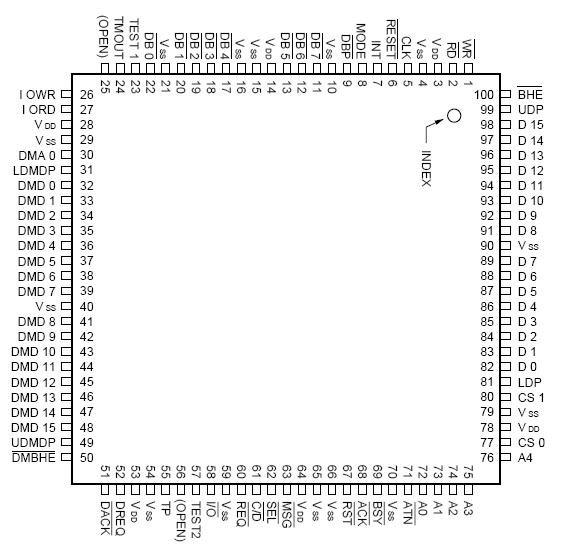

MB86604L Connection Diagram
