Part Number: MB91F158
Description: The MB91F158 is a microcontroller for CD/DVD using a RISC-CPU (FR 30 series) as its core.
- Table of contents:
MB91F158
-
Suppliers
DataSheet
General Description
MB91F158 General Description
The MB91F158 is a microcontroller for CD/DVD using a RISC-CPU (FR 30 series) as its core.
MB91F158 Maximum Ratings
| Parameter |
Symbol |
Rating |
Unit |
Remarks | |
|
Min |
Max | ||||
| Power supply voltage |
VCC |
VSS - 0.3 |
VSS + 3.5 |
V |
|
| Analog supply voltage |
AVCC |
VSS - 0.3 |
VSS + 3.5 |
V |
*1 |
| Analog reference voltage |
AVRH |
VSS - 0.3 |
VSS + 3.5 |
V |
*1 |
| Input voltage |
VI |
VSS - 0.3 |
VCC + 0.3 |
V |
|
| Analog pin input voltage |
VIA |
VSS - 0.3 |
AVCC + 0.3 |
V |
|
| Output voltage |
VO |
VSS - 0.3 |
VCC + 0.3 |
V |
|
| "L" level maximum output current |
IOL |
- |
10 |
mA |
*2 |
| "L" level average output current |
IOLAV |
- |
4 |
mA |
*3 |
| "L" level total maximum output current |
IOL |
- |
100 |
mA |
|
| "L" level total average output current |
IOLAV |
- |
50 |
mA |
*4 |
| "H" level maximum output current |
IOH |
- |
-10 |
mA |
*2 |
| "H" level average output current |
IOHAV |
- |
-4 |
mA |
*3 |
| "H" level total maximum output current |
IOH |
- |
-50 |
mA |
|
| "H" level total average output current |
IOHAV |
- |
-20 |
mA |
*4 |
| Power consumption |
PD |
- |
500 |
mW |
|
| Operating temperature |
TA |
0 |
+70 |
°C |
|
| Storage temperature |
Tstg |
-55 |
+150 |
°C |
|
MB91F158 Features
1. CPU
• 32-bit RISC (FR30) , load/store architecture, 5-stage pipeline
• General-purpose registers : 32 bits ´ 16
• 16-bit fixed-length instructions (basic instructions) , 1 instruction/ 1 cycle
• Memory-to-memory transfer, bit processing, barrel shift processing : Optimized for embedded applications
• Function entrance/exit instructions, and multiple load/store instructions of register contents, instruction systems
supporting high level languages
• Register interlock functions, efficient assembly language description
• Branch instructions with delay slots : Reduced overhead time in branching executions
• Internal multiplier/supported at instruction level
Signed 32-bit multiplication : 5 cycles
Signed 16-bit multiplication : 3 cycles
• Interrupt (PC and PS saving) : 6 cycles, 16 priority levels
• Support for little endian mode 2. Bus Interface
• 24-bit address output, 8/16-bit data input and output
• Basic bus cycle : 2-clock cycle
• Support for interface for various types of memory
• Unused data/address pins can be configured us input/output ports
• Support for little endian mode
• 32-bit RISC (FR30) , load/store architecture, 5-stage pipeline
• General-purpose registers : 32 bits ´ 16
• 16-bit fixed-length instructions (basic instructions) , 1 instruction/ 1 cycle
• Memory-to-memory transfer, bit processing, barrel shift processing : Optimized for embedded applications
• Function entrance/exit instructions, and multiple load/store instructions of register contents, instruction systems
supporting high level languages
• Register interlock functions, efficient assembly language description
• Branch instructions with delay slots : Reduced overhead time in branching executions
• Internal multiplier/supported at instruction level
Signed 32-bit multiplication : 5 cycles
Signed 16-bit multiplication : 3 cycles
• Interrupt (PC and PS saving) : 6 cycles, 16 priority levels
• Support for little endian mode 2. Bus Interface
• 24-bit address output, 8/16-bit data input and output
• Basic bus cycle : 2-clock cycle
• Support for interface for various types of memory
• Unused data/address pins can be configured us input/output ports
• Support for little endian mode

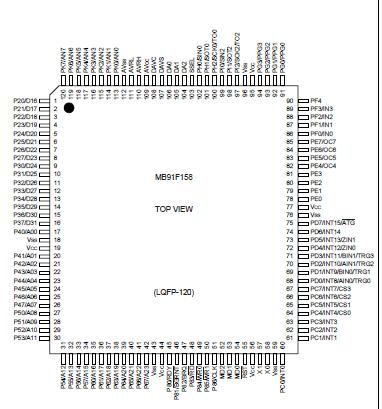

MB91F158 Connection Diagram
MB91F158PFF-G
PDF/DataSheet Download
- Datasheet: MB91F158PFF-G
- File Size: 757939 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
