Purchase MC100E112FN, In-stock MC100E112FN From SeekIC.
MFG:MOT Package Cooled:PLCC
Part Number: MC100E112FN
MFG: MOT
Package Cooled: PLCC
Description: TheMC10E/100E112 is a quad driver with two pairs of OR/NORoutputsfrom each gate, and a com...
- Table of contents:
MC100E112FN
-
Suppliers
DataSheet
General Description
MC100E112FN General Description
The MC10E/100E112 is a quad driver with two pairs of OR/NORoutputs from each gate, and a common, buffered enable input. Using thedata inputs the device can serve as an ECL memory address fan-outdriver. Using just the enable input, the device serves as a clock driver,although the MC10E/100E111 is designed specifically for this purpose,and offers lower skew than the E112. For memory address driver applications where scan capabilities are required, please refer to theE212 device.
MC100E112FN Features
•600ps Max. Propagation Delay
•Common Enable Input
•Extended 100E VEE Range of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors
•Common Enable Input
•Extended 100E VEE Range of 4.2V to 5.46V
•75kΩ Input Pulldown Resistors

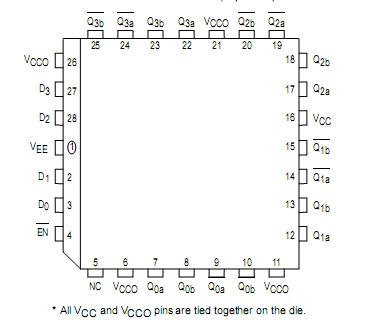

MC100E112FN Connection Diagram
MC100E112FN
PDF/DataSheet Download
- Datasheet: MC100E112FN
- File Size: 102060 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
