Part Number: MC100E142



MFG: MOT

Package Cooled: PLCC28

D/C: 07/08+

Description: The MC10E/100E142 is a 9-bit shift register, designed with byte-parity applications in mind. The E142 ...


Urgent Purchase

MC100E142 General Description


The MC10E/100E142 is a 9-bit shift register, designed with byte-parity applications in mind. The E142 performs serial/parallel in and serial/parallel out, shifting in one direction. The nine inputs D0 D8 accept parallel input data, while S-IN accepts serial input data. The Qn outputs do not need to be terminated for the shift operation to function. To minimize noise and power, any Q output not used should be left unterminated.

MC100E142 Features

`700MHz Min. Shift Frequency
`9-Bit for Byte-Parity Applications
` Asynchronous Master Reset
` Dual Clocks
` Extended 100E VEE Range of 4.2V to 5.46V
` 75k  Input Pulldown Resistors

The SEL (Select) input pin is used to switch between the two modes of operation - SHIFT and LOAD. The shift direction is from bit 0 to bit 8. Input data is accepted by the registers a set-up time before the positive going edge of CLK1 or CLK2; shifting is also accomplished on the positive clock edge. A HIGH on the Master Reset pin (MR) asynchronously resets all the resisters to zero.

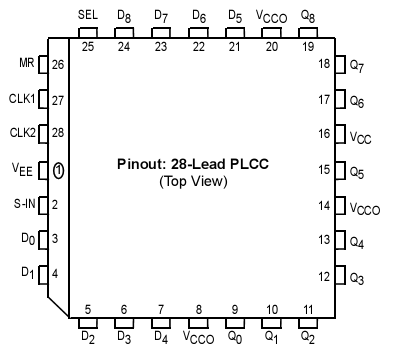

MC100E142 Connection Diagram

MC100E142 Connection Diagram
