Part Number: MC100E175
Description: The MC10E/100E175 is a 9-bit latch. It also features a tenth latched output, ODDPAR, which is formed a...
- Table of contents:
MC100E175
-
Suppliers
DataSheet
General Description
MC100E175 General Description
The MC10E/100E175 is a 9-bit latch. It also features a tenth latched output, ODDPAR, which is formed as the odd parity of the nine data inputs (ODDPAR is HIGH if an odd number of the inputs are HIGH).
The E175 can also be used to generate byte parity by using D8 as the parity-type select (L = even parity, H = odd parity), and using ODDPAR as the byte parity output.
The LEN pin latches the data when asserted with a logical high and makes the latch transparent when placed at a logic low level.
MC100E175 Features
`9-Bit Latch
` Parity Detection/Generation
`800ps Max. D to Output
` Reset
` Extended 100E VEE Range of 4.2V to 5.46V
`Internal 75k Input Pulldown Resistors
` Parity Detection/Generation
`800ps Max. D to Output
` Reset
` Extended 100E VEE Range of 4.2V to 5.46V
`Internal 75k Input Pulldown Resistors

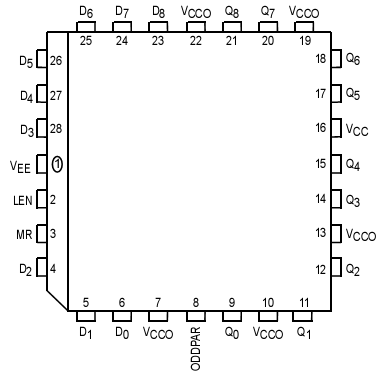

MC100E175 Connection Diagram
