MC100E404

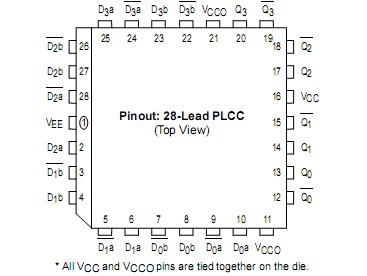

    The MC10E404/100E404 is a 4-bit differential AND/NAND device. The differential operation of the device makes it ideal for pulse shaping applications where duty cycle skew is critical. Special design techniques were incorporated to minimize the skew between the upper and lower level gate inputs.

    Because a negative 2-input NAND function is equivalent to a 2-inputOR function, the differential inputs and outputs of the device also allow forits use as a fully differential 2 input OR/NOR function.

    The output RISE/FALL times of this device are significantly faster thanmost other standard ECLinPS devices resulting in n increased band width.

    The differential inputs have clamp structures which will force the Qoutput of a gate in an open input condition to go to a LOW state. Thus,inputs of unused gates can be left open and willnot affect the operation of the rest of the device. Note that the input clamp will take affect only if bothinputs fall 2.5V below V_CC.
