Purchase MC100E445, In-stock MC100E445 From SeekIC.
MFG:MOT / ON Package Cooled:PLCC
Part Number: MC100E445
MFG: MOT / ON
Package Cooled: PLCC
Description: The MC10/100E445 is an integrated 4-bit serial to parallel data converter. The devi...
- Table of contents:
MC100E445
-
Suppliers
DataSheet
General Description
MC100E445 General Description
The MC10/100E445 is an integrated 4-bit serial to parallel data converter. The device is designed to operate for NRZ data rates of up to 2.0Gb/s. The chip generates a divide by 4 and a divide by 8 clock for both 4-bit conversion and a two chip 8-bit conversion function. The conversion sequence was chosen to convert the first serial bit to Q0, the second to Q1 etc.
MC100E445 Features
• On-Chip Clock÷4 and ÷8
• 2.0Gb/s Data Rate Capability
• Differential Clock and Serial Inputs
• VBB Output for Single-Ended Input Applications
• Asynchronous Data Synchronization
• Mode Select to Expand to 8-Bits
• Internal 75kΩ Input Pulldown Resistors
• Extended 100E VEE
Range of 4.2V to 5.46V
• 2.0Gb/s Data Rate Capability
• Differential Clock and Serial Inputs
• VBB Output for Single-Ended Input Applications
• Asynchronous Data Synchronization
• Mode Select to Expand to 8-Bits
• Internal 75kΩ Input Pulldown Resistors
• Extended 100E VEE
Range of 4.2V to 5.46V

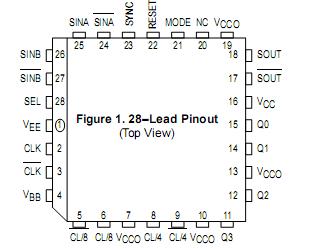

MC100E445 Connection Diagram
MC100E445
PDF/DataSheet Download
- Datasheet: MC100E445
- File Size: 79129 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
