Part Number: MC100EL04









Description: TheMC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionallyequivalentto...


Urgent Purchase

MC100EL04 General Description


The MC10EL/100EL04 is a 2-input AND/NAND gate. The device is functionally equivalent to the E104 device with higher performancecapabilities. With propagation delays and output transition timessignificantly faster than the E104 the EL04 is ideally suited for thoseapplications which require the ultimate in AC performance.

MC100EL04 Features

•240ps Propagation Delay
•High Bandwidth Output Transitions
•75kΩ Internal Input Pulldown Resistors
•>1000V ESD Protection

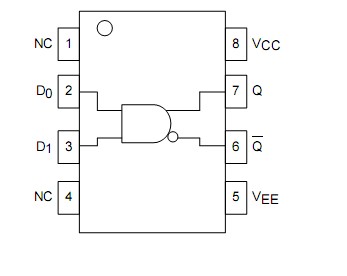

MC100EL04 Connection Diagram

MC100EL04 Connection Diagram
