Purchase MC100LVEL58, In-stock MC100LVEL58 From SeekIC.
- Table of contents:
MC100LVEL58
-
Suppliers
DataSheet
General Description
MC100LVEL58 Maximum Ratings
| Symbol | Characteristic | Rating | Unit |
| VEE | Power Supply (VCC = 0V) | 8.0 to 0 | VDC |
| VI | Input Voltage (VCC = 0V) | 0 to 6.0 | VDC |
| Iout | Output Current Continuous Surge |
50 100 |
mA |
| TA | Operating Temperature Range | 40 to +85 | °C |
| VEE | Operating Range1,2 | 5.7 to 3.0 | V |
| QJA | Thermal Resistance (JunctiontoAmbient) Still Air 500lfpm |
190 130 |
°C/W |
| QJC | Thermal Resistance (JunctiontoCase) | 41 to 44 ± 5% | °C/W |
| Tsol | Solder Temperature (<2 to 3 Seconds: 245°C desired) | 265 | °C |

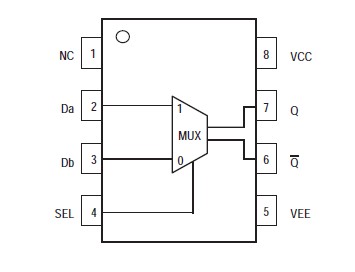

MC100LVEL58 Connection Diagram
MC100LVEL58
PDF/DataSheet Download
- Datasheet: MC100LVEL58
- File Size: 67970 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
