Purchase MC10319, In-stock MC10319 From SeekIC.
MFG:MOTOROLA Package Cooled:SMD D/C:220
- Table of contents:
MC10319
-
Suppliers
DataSheet
General Description
MC10319 Maximum Ratings
| Rating | Symbol | Value | Unit |
| Supply Voltage | VCC(A),(D) VEE |
+ 7.0 7.0 |
Vdc |
| Positive Supply Voltage Differential | VCC(D) VCC(A) |
0.3 to + 0.3 | Vdc |
| Digital Input Voltage (Pins 18 to 20) | VI(D) | 0.5 to + 7.0 | Vdc |
| Analog Input Voltage (Pins 1, 14, 23, 24) | VI(A) | 2.5 to + 2.5 | Vdc |
| Reference Voltage Span (Pin 24 to Pin 23) | 2.3 | Vdc | |
| Applied Output Voltage (Pins 4 to 10, 21 in 3State) | 0.3 to + 7.0 | Vdc | |
| Junction Temperature | TJ | + 150 | °C |
| Storage Temperature | Tstg | 65 to + 150 | °C |

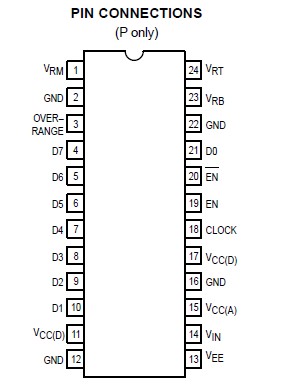

MC10319 Connection Diagram
MC10319DW
PDF/DataSheet Download
- Datasheet: MC10319DW
- File Size: 346899 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
