Part Number: MC10H102



MFG: mot

Package Cooled: PLCC



Description: The MC10H102 is a quad 2input NOR gate. The MC10H102 provides one gate with OR/NOR outputs. This MECL 10H part is a fun...


Urgent Purchase

MC10H102 General Description


The MC10H102 is a quad 2input NOR gate. The MC10H102 provides one gate with OR/NOR outputs. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increases in power supply current.

MC10H102 Maximum Ratings

Characteristic
Symbol
Rating
Unit
PowerSupply (VCC= 0)
VEE
8.0 to 0
Vdc
InputVoltage (VCC= 0)
VI
0 to VEE
Vdc
Output Current- Continuous
            - Surge
Iout
50
100
mA
Operating Temperature Range
TA
0 to +75
Storage Temperature Range- Plastic
                         - Ceramic
Tstg
55 to +150
55 to +165

MC10H102 Features

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 25 mW/Gate (same as MECL 10K)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

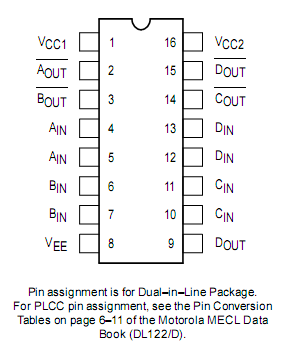

MC10H102 Connection Diagram

MC10H102 Connection Diagram
