Part Number: MC10H115

MFG: mot

Package Cooled: PLCC

Description: The MC10H115 is a quad differential amplifier designed for use in sensing differential signals over long lines. This 10...

MC10H115 General Description

The MC10H115 is a quad differential amplifier designed for use in sensing differential signals over long lines. This 10H part is a functional/ pinout duplication of the standard MECL 10K family part, with 100% improvement in counting frequency and no increase in powersupply current.

The base bias supply (VBB) is made available at Pin 9 to make the device useful as a Schmitt trigger, or in other applications where a stable reference voltage is necessary. Active current sources provide the MC10H115 with excellent common mode rejection. If any amplifier in a package is not used, one input of that amplifier must be connected to VBB(Pin 9) to prevent upsetting the current source bias network.

MC10H115 Features

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 110 mW Typ/Pkg (No Load)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

MC10H115 Typical Application

•Low Level Receiver
•Voltage Level
•Schmitt Trigger Interface

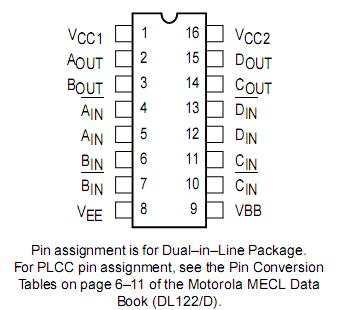

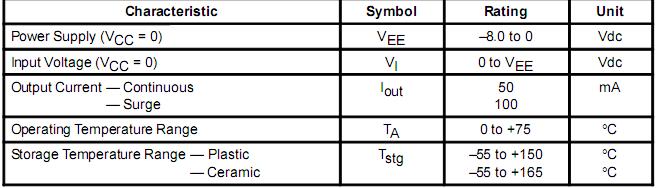

MC10H115 Connection Diagram

MC10H115 datasheet

MC10H115
PDF/DataSheet Download

Datasheet: MC10H115
File Size: 75796 KB
Manufacturer: ONSEMI [ON Semiconductor]
Click here to Download
