Five Points

Part Number: MC10H116



MFG: mot

Package Cooled: PLCC



Description: The MC10H116 is a functional/pinout duplication of the MC10116, with 100% improvement in propagation delay and no incre...


Urgent Purchase

MC10H116 General Description


The MC10H116 is a functional/pinout duplication of the MC10116, with 100% improvement in propagation delay and no increase in power supply current.

MC10H116 Features

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 85 mW Typ/Pkg (same as MECL 10K)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

MC10H116 Typical Application

•Low Level Receiver
•Voltage Level
•Schmitt Trigger Interface

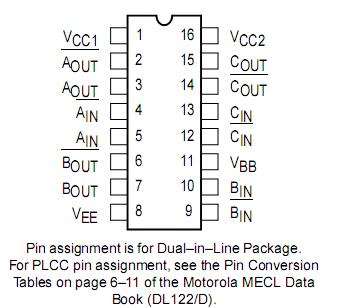

MC10H116 Connection Diagram

MC10H116 Connection Diagram

MC10H116 datasheet

MC10H116
PDF/DataSheet Download
