Part Number: MC10H123



MFG: mot

Package Cooled: PLCC



Description: The MC10H123 is a triple 433Input Bus Driver.The MC10H123 consists of three NOR gates designed for bus driving ...


Urgent Purchase

MC10H123 General Description


The MC10H123 is a triple 433Input Bus Driver.

The MC10H123 consists of three NOR gates designed for bus driving applications on card or between cards. Output low logic levels are specified with VOL= 2.1 Vdc so that the bus may be terminated to 2.0 Vdc. The gate output, when low, appears as a high impedance to the bus, because the outputemitterfollowers of the MC10H123 are "turnedoff." This eliminates discontinuities in the characteristic impedance of the bus.

The VOH level is specified when driving a 25ohm load terminated to 2.0Vdc, the equivalent of a 50ohm bus terminated at both ends. Although 25ohms is the lowest characteristic impedance that can be driven by the MC10H123, higher impedance values may be used with this part. A typical 50ohm bus is shown in Figure 1.

MC10H123 Maximum Ratings

Characteristic
Symbol
Rating
Unit
PowerSupply (VCC= 0)
VEE
8.0 to 0
Vdc
InputVoltage (VCC= 0)
VI
0 to VEE
Vdc
Output Current- Continuous
               - Surge
Iout
50
100
mA
Operating Temperature Range
TA
0 to +75
Storage Temperature Range- Plastic
                               - Ceramic
Tstg
55 to +150
55 to +165

MC10H123 Features

•Propagation Delay, 1.5 ns Typical
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

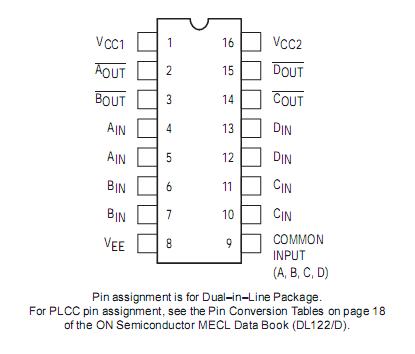

MC10H123 Connection Diagram

MC10H123 Connection Diagram
