MC10H166
-
Suppliers
DataSheet
General Description
MC10H166 Maximum Ratings
|
Characteristic |
Symbol |
Rating |
Unit |
|
Power Supply (VCC = 0) |
VEE |
8.0 to 0 |
Vdc |
|
Input Voltage (VCC= 0) |
VI |
0 to VEE |
Vdc |
|
Output Current- Continuous
- Surge |
Iout |
50
100 |
mA |
|
Operating Temperature Range |
TA |
0 to +75 |
|
|
Storage Temperature Range- Plastic
- Ceramic |
Tstg |
55 to +150
-55 to +165 |
MC10H166 Features
Propagation Delay, DatatoOutput, 2.0 ns Typical
Power Dissipation 440 mW Typical
Improved Noise Margin 150 mV (Over Operating Voltage andTemperature Range)
Voltage Compensated
MECL 10KCompatible
Power Dissipation 440 mW Typical
Improved Noise Margin 150 mV (Over Operating Voltage andTemperature Range)
Voltage Compensated
MECL 10KCompatible

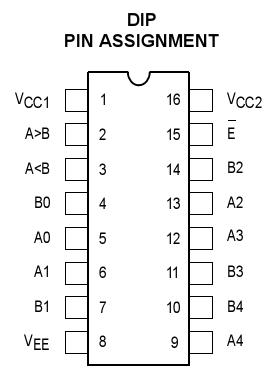

MC10H166 Connection Diagram
MC10H166
