MFG:mot Package Cooled:PLCC D/C:07/08+
MFG: mot
Package Cooled: PLCC
D/C: 07/08+
Description: The MC10H645 is a single supply, low skew, TTL I/O 1:9 Clock Driver. Devices in the Motorola H600 cloc...
The MC10H645 is a single supply, low skew, TTL I/O 1:9 Clock Driver. Devices in the Motorola H600 clock driver family utiize the 28lead PLCC for optimal power and signal pin placement.
The device features a 24mA TTL ouput stage with AC performance specified into a 50pF load capacitance. A 2:1 input mux is provided on chip to allow for distributing both system and diagnostic clock signals or designing clock redundancy into a system. With the SEL input held LOW the DO input will be selected, while the D1 input is selected when the SEL input is forced HIGH.

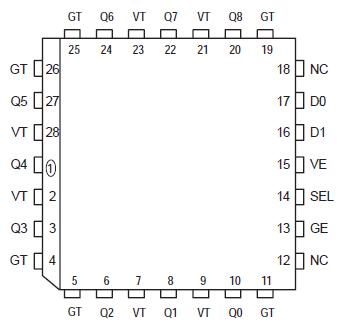

| PIN | FUNCTION |
| GT VT VE GE Dn Q0 Q8 SEL |
TTL Ground (0V) TTL VCC (+5.0V) ECL VCC (+5.0V) ECL Ground (0V) TTL Signal Input TTL Signal Outputs TTL Mux Select |
MC10H645
PDF/DataSheet Download
