Part Number: MC14071B



MFG: MOT

Package Cooled: SOP16

D/C: 08+

Description: The B Series logic gates are constructed with P and N channel enhancement mode devices in a single mon...


Urgent Purchase

MC14071B General Description


The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power
dissipation and/or high noise immunity is desired.

MC14071B Maximum Ratings

Symbol
Parameter
Value
Unit
VDD
DC Supply Voltage Range
−0.5 to +18.0
V
Vin, Vout

Input or Output Voltage Range
(DC or Transient)
−0.5 to VDD+ 0.5
V
Iin, Iout

Input or Output Current
(DC or Transient) per Pin
±10
mA
PD

Power Dissipation, per Package
(Note 1)
500
mW
TA

Ambient Temperature Range
−55 to +125
°C
Tstg

Storage Temperature Range
−65 to +150
°C
TL

Lead Temperature
(8−Second Soldering)
260
°C





MC14071B Features

Supply Voltage Range = 3.0 Vdc to 18 Vdc
All Outputs Buffered
Capable of Driving Two Low−power TTL Loads or One Low−power
  Schottky TTL Load Over the Rated Temperature Range.
Double Diode Protection on All Inputs Except: Triple Diode
  Protection on MC14011B and MC14081B
Pin−for−Pin Replacements for Corresponding CD4000 Series
  B Suffix Devices
Pb−Free Packages are Available*

MC14071B Connection Diagram

MC14071B Connection Diagram

MC14071B datasheet

MC14071B
PDF/DataSheet Download

Find MC14071B Suppliers

  • ·MC1000
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1000 Datasheet Download
  • ·MC1001
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1001 Datasheet Download
  • ·MC100193
  • ON SEMICONDUCTOR
  • 5V ECL Error Detection/Correction Circuit
  • 124927 KB
  • MC100193 Datasheet Download
  • ·MC1002
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1002 Datasheet Download
  • ·MC100210
  • ON SEMICONDUCTOR
  • 5V ECL Dual 1:4, 1:5 Differential Fanout Buffer
  • 225280 KB
  • MC100210 Datasheet Download
  • ·MC100241
  • ON SEMICONDUCTOR
  • 5V ECL 8-Bit Scannable Register
  • 225280 KB
  • MC100241 Datasheet Download
  • ·MC100256
  • ON SEMICONDUCTOR
  • 5V ECL 3 Bit 4:1 Mux Latch
  • 124927 KB
  • MC100256 Datasheet Download
  • ·MC1003
  • MOTOROLA [Motorola, Inc]
  • 6-INPUT GATES
  • 205166 KB
  • MC1003 Datasheet Download

Related Part Number

MC14071B Relative Products

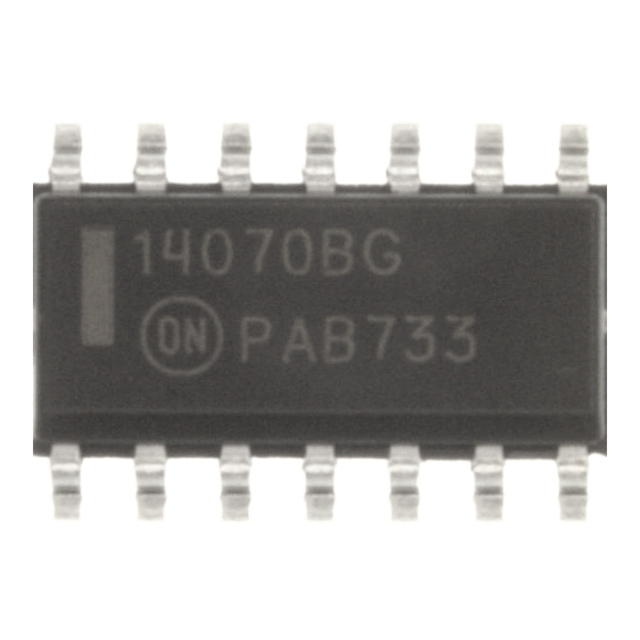

  • MC14070BDR2G
