General Description
MC1413,B General Description
The seven NPN Darlington connected transistors in these arrays are well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Their high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit them to drive incandescent lamps.
The MC1413, B with a 2.7 kW series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic. The MC1416, B uses a series 10.5 kW resistor and is useful in 8.0 to 18 V MOS systems.
MC1413,B Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Output Voltage |
VO |
50 |
V |
| Input Voltage |
VI |
30 |
V |
| Collector Current Continuous |
IC |
500 |
mA |
| Base Current Continuous |
IB |
25 |
mA |
| Operating Ambient Temperature Range MC141316 MC1413B16B |
TA |
20 to +85 40 to +85 |
|
| Storage Temperature Range |
Tstg |
55 to +150 |
|
| Junction Temperature |
TJ |
150 |
|
| Thermal Resistance, JunctiontoAmbient Case 648, P Suffix Case 751B, D Suffix |
JA |
67 100 |
/W |
NOTE: ESD data available upon request.

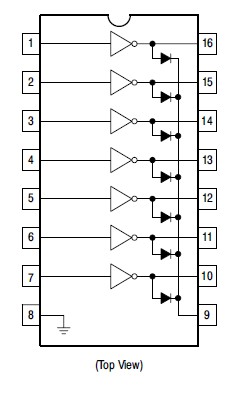

MC1413,B Connection Diagram
