General Description
MC141511A General Description
The MC141511A is an LCD frontplane (segment) driver chip which includes a 656 x 8 display RAM. The MC68HC05L10 microcomputer is the companion device which provides the backplane drive. The MC68HC05L10, together with one MC141511A, may be used to drive a 5248-pixel muxed-by-41 display or a 4096-pixel muxed-by-32 display. Larger displays may be driven by adding additional MC141511A. The MC141511A is a low operating voltage version of MC141511. It is pin to pin compatible to the MC141511. See Application Note AN-HK-13A.
MC141511A Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VDD | Supply Voltage | -0.3 to +7.0 | V |
| VLCD | -0.3 to +14.0 | V | |
| Vin | Input Voltage | VSS-0.3 to VDD+0.3 | V |
| I | Current Drain Per Pin Excluding VDD and VSS | 25 | mA |
| TA | Operating Temperature | -20 to +70 | °C |
| Tstg | Storage Temperature Range | -65 to +150 | °C |
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the limits in the Electrical Characteristics tables or Pin Description section.
MC141511A Features
• Operating Supply Voltage Range - Control Logic, RAM, and Latch (VDD Pin): 2.7V to 5.5V Frontplane Drivers (VLCD Pin): 4.5V to 13.2V
• Operating Temperature Range: -20 to 70°C
• Direct Interface with the MC68HC05L10
• 656 x 8 Static RAM (Display RAM)
• 128 LCD Segment (Frontplane) Driving Signals
• 10-Bit Address Bus and 8-Bit Bidirectional Data Bus
• Selectable 1:32 or 1:41 Multiplex Ratios
• Available in Two Forms:
TAB (Tape Automated Bonding), 161 Contacts, 10 sprocket hole device
Die Form Without Gold Bumps, 159 Pads with 4.5 mil Pads Pitch

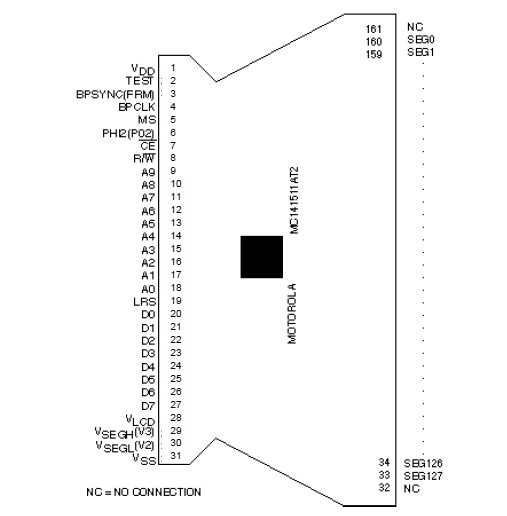

MC141511A Connection Diagram
MC141511AT2
