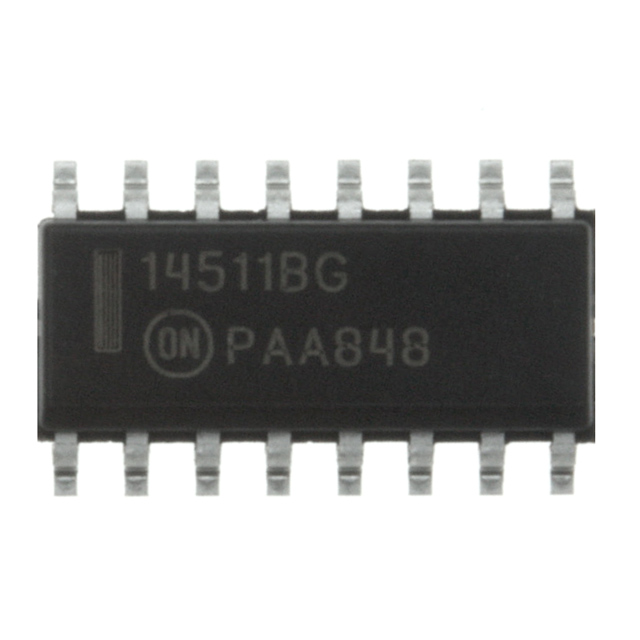

MC14511BDW

The MC14511BDW is one member of the MC14511 family which is designed as the BCDtoseven segment latch/decoder/driver that is constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. Also MC14511BDW can be used in instrument (e.g., counter, DVM, etc.) display driver, computer/calculator display driver, cockpit display driver, and various clock, watch, and timer uses.

Features of the MC14511BDW are:(1)Low Logic Circuit Power Dissipation; (2)High-current Sourcing Outputs (Up to 25 mA); (3)Latch Storage of Code; (4)Blanking Input; (5)Lamp Test Provision; (6)Readout Blanking on all Illegal Input Combinations; (7)Lamp Intensity Modulation Capability; (8)Time Share (Multiplexing) Facility; (9)Supply Voltage Range = 3.0 V to 18 V; (10)Capable of Driving Two Low power TTL Loads, One Low power Schottky TTL Load or Two HTL Loads Over the Rated Temperature Range; (11)Chip Complexity: 216 FETs or 54 Equivalent Gates; (12)Triple Diode Protection on all Inputs.

The absolute maximum ratings of the MC14511BDW can be summarized as:(1)DC Supply Voltage Range: -0.5 to +18.0 V;(2)Input Voltage Range, All Inputs:0.5 to VDD + 0.5 V;(3)DC Current Drain per Input Pin: 10 mA;(4)Power Dissipation, per Package: 500 mW;(5)Operating Temperature Range:55 to +125 °C;(6)Storage Temperature Range:65 to +150 °C;(7)Maximum Output Drive Current (Source) per Output: 25 mA;(8)Maximum Continuous Output Power (Source) per Output: 50 mA. If you want to know more information such as the electrical characteristics about the MC14511BDW, please download the datasheet in www.seekic.com or www.chinaicmart.com .
