General Description
MC68HC58 Maximum Ratings
|
Symbol |
Description |
Min |
Max |
Units |
|
VBATT |
Supply voltage |
0.5 |
26.5 |
V |
|
VBATT |
Supply voltage (t 1 ms) |
40.0 |
V | |
|
VCC,VDD |
Supply voltage |
0.5 |
5.75 |
V |
|
TSTG |
Storage temperature range |
-65 |
+150.0 |
°C |
|
TJ |
Maximum junction temperature |
+150.0 |
°C |
MC68HC58 Features
• SAE J1850 compatible
• Class 2 (vehicle bus communication protocol) compatible
• Handles all network protocol functions (access, arbitration, error detection)
• Supports polled or interrupt host DLC servicing
• Message buffering on transmit and receive
• On-board transceiver with waveshaping
• Operates with up to a 2-volt ground offset between network nodes
• Pin configurable SPI or parallel host interface
• Digitally filtered receiver
• Host configurable oscillator divisor
• Power conserving sleep feature with fast wakeup on bus or host activity
• High voltage CMOS (40 volt HVCMOS) process
• Built-in transient and ESD protection
• Class 2 (vehicle bus communication protocol) compatible
• Handles all network protocol functions (access, arbitration, error detection)
• Supports polled or interrupt host DLC servicing
• Message buffering on transmit and receive
• On-board transceiver with waveshaping
• Operates with up to a 2-volt ground offset between network nodes
• Pin configurable SPI or parallel host interface
• Digitally filtered receiver
• Host configurable oscillator divisor
• Power conserving sleep feature with fast wakeup on bus or host activity
• High voltage CMOS (40 volt HVCMOS) process
• Built-in transient and ESD protection

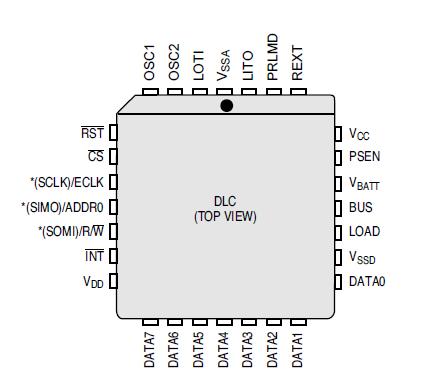

MC68HC58 Connection Diagram
