Part Number: MC68HC705P6A





Package Cooled: FREESCALE

D/C: 07+

Description: The following paragraphs describe the functionality of each pin on the MC68HC705P6A package. Pins connected to subsyste...


Urgent Purchase

MC68HC705P6A General Description


The following paragraphs describe the functionality of each pin on the MC68HC705P6A package. Pins connected to subsystems described in other chapters provide a reference to the chapter instead of a detailed functional description.

MC68HC705P6A Features

•Low cost
•M68HC05 core
•28-pin SOIC, PDIP, or windowed DIP package
•4672 bytes of user EPROM (including 48 bytes of page zero
 EPROM and 16 bytes of user vectors)
•239 bytes of bootloader ROM
•176 bytes of on-chip RAM
•4-channel 8-bit A/D converter
•SIOP serial communications port
•16-bit timer with output compare and input capture
•20 bidirectional I/O lines and 1 input-only line
•PC0 and PC1 high-current outputs
•Single-chip, bootloader, and test modes
•Power-saving stop, halt, and wait modes
•Static EPROM mask option register (MOR) selectable options:
COP watchdog timer enable or disable
Edge-sensitive or edge- and level-sensitive external interrupt
SIOP most significant bit (MSB) or least significant bit (LSB) first
SIOP clock rates: OSC divided by 8, 16, 32, or 64
Stop instruction mode, STOP or HALT
EPROM security external lockout
Programmable keyscan (pullups/interrupts) on PA0PA7

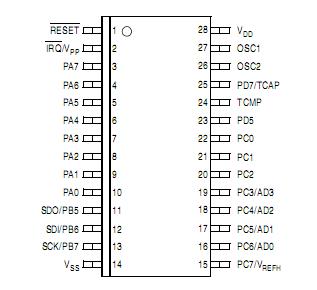

MC68HC705P6A Connection Diagram

MC68HC705P6A Connection Diagram

MC68HC705P6A datasheet

MC68HC705P6A
PDF/DataSheet Download

Find MC68HC705P6A Suppliers

  • ·MC6173
  • MOTOROLA [Motorola, Inc]
  • 2400 bps DIGITAL DEMODULATOR
  • 870882 KB
  • MC6173 Datasheet Download
  • ·MC6173L
  • MOTOROLA [Motorola, Inc]
  • 2400 bps DIGITAL DEMODULATOR
  • 870882 KB
  • MC6173L Datasheet Download
  • ·MC6173P
  • MOTOROLA [Motorola, Inc]
  • 2400 bps DIGITAL DEMODULATOR
  • 870882 KB
  • MC6173P Datasheet Download
  • ·MC623
  • ONSEMI [ON Semiconductor]
  • 3V, Dual Trip Point Temperature Sensor
  • 73582 KB
  • MC623 Datasheet Download
  • ·MC623DR2
  • ONSEMI [ON Semiconductor]
  • 3V, Dual Trip Point Temperature Sensor
  • 77050 KB
  • MC623DR2 Datasheet Download
  • ·MC624
  •
  • PWM FAN SPEED CONTROLLER WITH FAULT DETECTION
  • 226511 KB
  • MC624 Datasheet Download
  • ·MC642
  • ON SEMICONDUCTOR
  • 3.0 V, Dual Trip Point Temperature Sensor
  • 124927 KB
  • MC642 Datasheet Download
  • ·MC642.REV3
  • ONSEMI [ON Semiconductor]
  • 3.0 V, Dual Trip Point Temperature Sensor
  • 67492 KB
  • MC642.REV3 Datasheet Download

Related Part Number

MC68HC705P6A Relative Products

  • MC68HC705MC4

    MC68HC705MC4

    The motorola MC68HC705MC4 microcontroller is a low-cost M68HC05 family EPROM microprocessor intended for use in industrial motor control and power supply applications. It features a 2-channel, 8-bit high speed PWM module (including a commutation mux for brus...

  • MC68HC705L5FUE

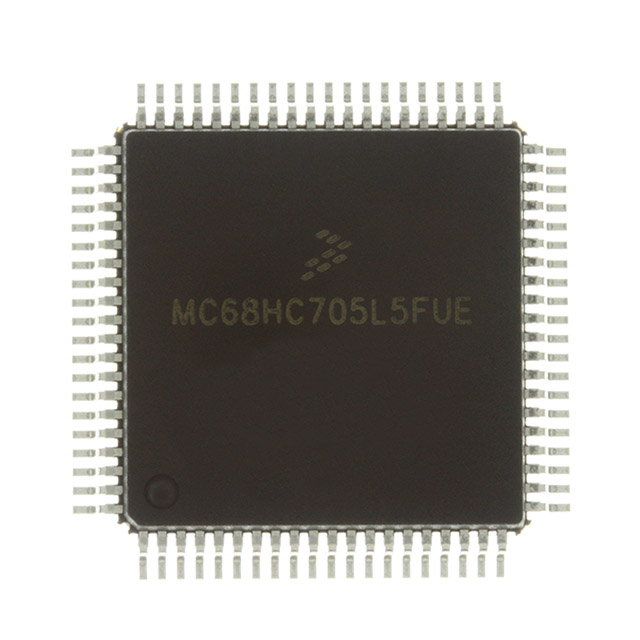

    MC68HC705L5FUE
