MC74VCX16374
-
Suppliers
DataSheet
General Description
MC74VCX16374 Maximum Ratings
|
Symbol |
Parameter |
Value |
Condition |
Unit |
|
VCC |
DC Supply Voltage |
0.5 to +4.6 |
V | |
|
VI |
DC Input Voltage |
0.5 3 VI 3 +4.6 |
V | |
|
VO |
DC Output Voltage |
0.5 3 VO 3 +4.6 |
Output in 3State |
V |
|
0.5 3 VO 3 VCC + 0.5 |
Note 1.; Outputs Active |
V | ||
|
IIK |
DC Input Diode Current |
50 |
VI < GND |
mA |
|
IOK |
DC Output Diode Current |
50 |
VO < GND |
mA |
|
+50 |
VO > VCC |
mA | ||
|
IO |
DC Output Source/Sink Current |
+50 |
mA | |
|
ICC |
DC Supply Current Per Supply Pin |
±100 |
mA | |
|
IGND |
DC Ground Current Per Ground Pin |
±100 |
mA | |
|
TSTG |
Storage Temperature Range |
65 to +150 |

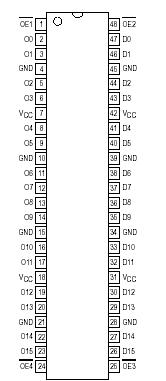

MC74VCX16374 Connection Diagram
MC74VCX16374
PDF/DataSheet Download
- Datasheet: MC74VCX16374
- File Size: 98293 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
