MCM6709B

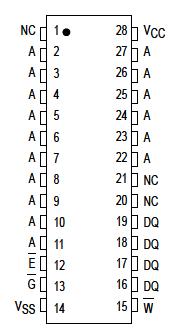

Pinout




Specifications

Rating	SymbOl	ValUe	Unit
Power Supply Voltage	VCC	0.5 to + 7.0	V
Voltage Relative to VSS for Any Pin	Vin, Vout	0.5 to VCC + 0.5	V
Except VCC
Output Current (per I/O)	Iout	± 30	mA
Power Dissipation	PD	2	W
Temperature Under Bias	Tbias	10 to + 85	°C
Operating Temperature	TA	0 to + 70	°C
Storage Temperature - Plastic	Tstg	55 to + 125	°C

Description

This MCM6709B contains circuitry to protect the inputs against damage due to high static voltages or electric fields;However, it is advised that normal precautions be taken to avoid application of any voltage higher than maximum rated voltages to this highimpedance circuit.

This BiCMOS memory circuit of the MCM6709B has been designed to meet the dc and ac specifications shown in the tables, after thermal equilibrium has been established. The circuit is in a test socket or mounted on a printed circuit board and transverse air flow of at least 500 linear feet per minute is maintained.
