MCM6926A

Features: • Single 3.3 V Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Access Times: 8, 10, 12, 15 ns• Center Power and I/O Pins for Reduced Noise• Fully 3.3 V BiCMOS...

product image

MCM6926A Picture
See larger image
SeekIC No. : 004417890 Detail

MCM6926A: Features: • Single 3.3 V Power Supply• Fully Static - No Clock or Timing Strobes Necessary• All Inputs and Outputs Are TTL Compatible• Three State Outputs• Fast Access ...

MCM6926A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCM6926A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 3.3 V Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• All Inputs and Outputs Are TTL Compatible
• Three State Outputs
• Fast Access Times: 8, 10, 12, 15 ns
• Center Power and I/O Pins for Reduced Noise
• Fully 3.3 V BiCMOS

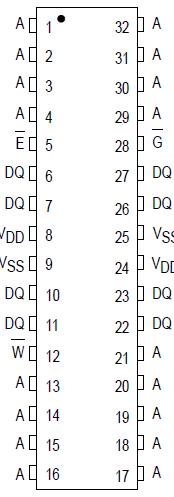

Pinout

Connection Diagram


Specifications

Rating

Symbol

Value

Unit

Power Supply Voltage

VDD

0.5 to + 4.6

V

Voltage Relative to VSS for Any Pin Except VDD

Vin,Vout

0.5 to VDDC + 0.5

V

Output Current (per I/O)

Iout

±30

mA

Power Dissipation

PD

0.6

W

Temperature Under Bias

Tbias

10 to + 85

°C

Operating Temperature
TA
0 to + 70
°C
Storage Temperature

Tstg

55 to + 125

°C
