Part Number: MH89790B



MFG: MIT

Package Cooled: DIP



Description: The MH89790B is Mitel's CEPT PCM 30 interface solution, designed to meet the latest CCITT standards PCM 30 format with ...


Urgent Purchase

MH89790B General Description


The MH89790B is Mitel's CEPT PCM 30 interface solution, designed to meet the latest CCITT standards PCM 30 format with CRC-4. The MH89790B provides a complete interface between a 2.048 Mbit/sec digital trunk and Mitel's Serial Telecom Bus, the ST-BUS.

The MH89790B is a pin-compatible enhancement of the MH89790, permitting the removal of the tuneable inductor and inclusion of the external NAND gate used for generating RxD.

MH89790B Maximum Ratings


Parameter
Symbol
Min
Max
Units
1
 Supply Voltage with respect to VSS
VDD
-0.3
7
V
2
 Voltage on any pin other than supplies
VSS-0.3
VDD+0.3
V
3
 Current at any pin other than supplies
40
mA
4
 Storage Temperature
TST
-40
85
°C
5
 Package Power Dissipation
P
800
mW

MH89790B Features

• Complete primary rate 2048 kbit/s CEPT transceiver with CRC-4 option
• Selectable HDB3 or AMI line code
• Two frame elastic buffer with 32ms jitter buffer
• Tx and Rx frame and multiframe synchroniza-tion signals
• Frame alignment and CRC error counters
• Insertion and detection of A, B, C, D signalling bits with optional debounce
• Line driver and receiver
• Per channel, overall, and remote loop around
• Digital phase detector between E1 line and ST-BUS
• ST-BUS compatible
• Pin compatible with the MH89790
• Inductorless clock recovery
• Loss of Signal (LOS) indication
• Available in standard, narrow and surface mount formats
• Supports single supply rail operation

MH89790B Typical Application

• Primary rate ISDN network nodes
• Multiplexing equipment
• Private network: PBX to PBX links

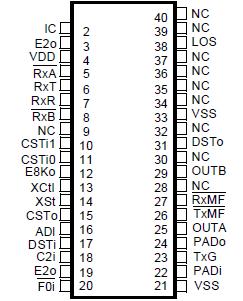

MH89790B Connection Diagram

MH89790B Connection Diagram
