Description: The MK1707D generates a low EMI output clock from a crystal clock input. The...
- Table of contents:
MK1707D
-
Suppliers
DataSheet
General Description
MK1707D General Description
The MK1707D generates a low EMI output clock from a crystal clock input. The part is designed to dither the LCD interface clock for flat panel graphics controllers. The device uses ICS' proprietary mix of analog and digital Phase-Locked Loop (PLL) technology to spread the frequency spectrum of the output, thereby reducing the frequency amplitude peaks by several dB.
The MK1707D offers centered spread from a wide range of input clock frequencies.
ICS offers many other clocks for computers and computer peripherals. Consult ICS when you need to replace multiple crystals and oscillators from your board.
MK1707D Maximum Ratings
Stresses above the ratings listed below can cause permanent damage to the MK1707D. These ratings, which are standard values for ICS commercially rated parts, are stress ratings only. Functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods can affect product reliability. Electrical parameters are guaranteed only over the recommended operating temperature range.
|
Item |
Rating |
| Supply Voltage, VDD | 7 V |
| All Inputs and Outputs | -0.5 V to VDD+0.5 V |
| Ambient Operating Temperature(Commercial) | 0 to +70 |
| Ambient Operating Temperature(Industrial) | -40 to +85 |
| Storage Temperature | -65 to +150 |
| Junction Temperature | 125 |
| Soldering Temperature | 260 |
MK1707D Features
• Packaged in 8-pin SOIC
• Available in Pb (lead) free package
• Provides a spread spectrum output clock
• Supports flat panel controllers
• Accepts a crystal or clock input to provide same frequency dithered output
• Input operating frequencies of 25-54 and 50-108 MHz
• Peak reduction by 7dB to 14dB typical on 3rd through 19th odd harmonics
• Low EMI feature can be disabled
• Includes power down
• Operating voltage of 3.3 V
• Industrial temperature range available
• Advanced, low-power CMOS process
• Available in Pb (lead) free package
• Provides a spread spectrum output clock
• Supports flat panel controllers
• Accepts a crystal or clock input to provide same frequency dithered output
• Input operating frequencies of 25-54 and 50-108 MHz
• Peak reduction by 7dB to 14dB typical on 3rd through 19th odd harmonics
• Low EMI feature can be disabled
• Includes power down
• Operating voltage of 3.3 V
• Industrial temperature range available
• Advanced, low-power CMOS process

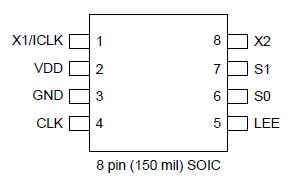

MK1707D Connection Diagram
MK1707D
PDF/DataSheet Download
- Datasheet: MK1707D
- File Size: 137916 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
